Combination Switch Disassembly/Assembly

  1. Remove the screws shown below, then pull the light switch, and the wiper and washer switch in the direction of the arrow respectively to remove them.

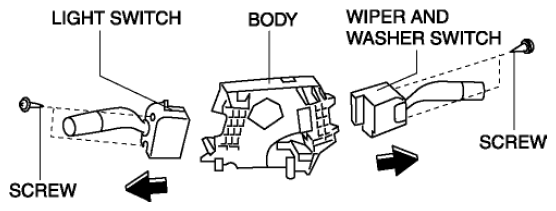

    Fig 1: Identifying Light Switch And Wiper And Washer Switch Pulling Direction And Screws
    G08153348Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
