Headlight Leveling Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX)
    8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    12. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Verify that the resistance and continuity between the headlight leveling switch terminals is as indicated in the table.
    Fig 1: Identifying Headlight Leveling Switch Terminals
    G08153360Courtesy of MAZDA MOTORS CORP.
    • If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the headlight leveling switch.

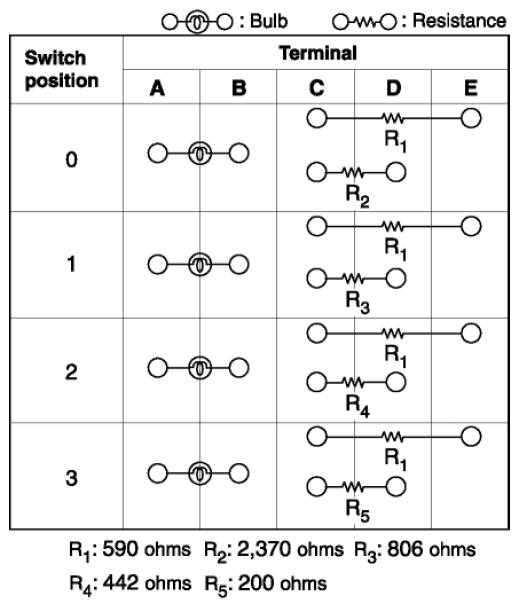

    Fig 2: Headlight Leveling Switch Terminals Resistance And Continuity Table
    G08153361Courtesy of MAZDA MOTORS CORP.
