Light Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

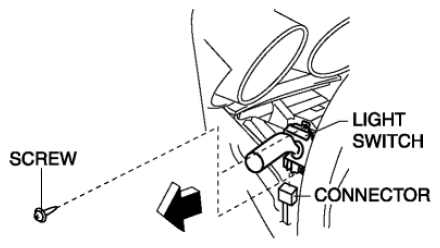

    Fig 1: Identifying Light Switch Pulling Direction
    G08153349Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the light switch by pulling it in the direction of the arrow shown.
  6. Install in the reverse order of removal.
