Short-Code Inspection

  1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  2. Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  3. Verify that the continuity between side turn light terminals is as indicated in the table.

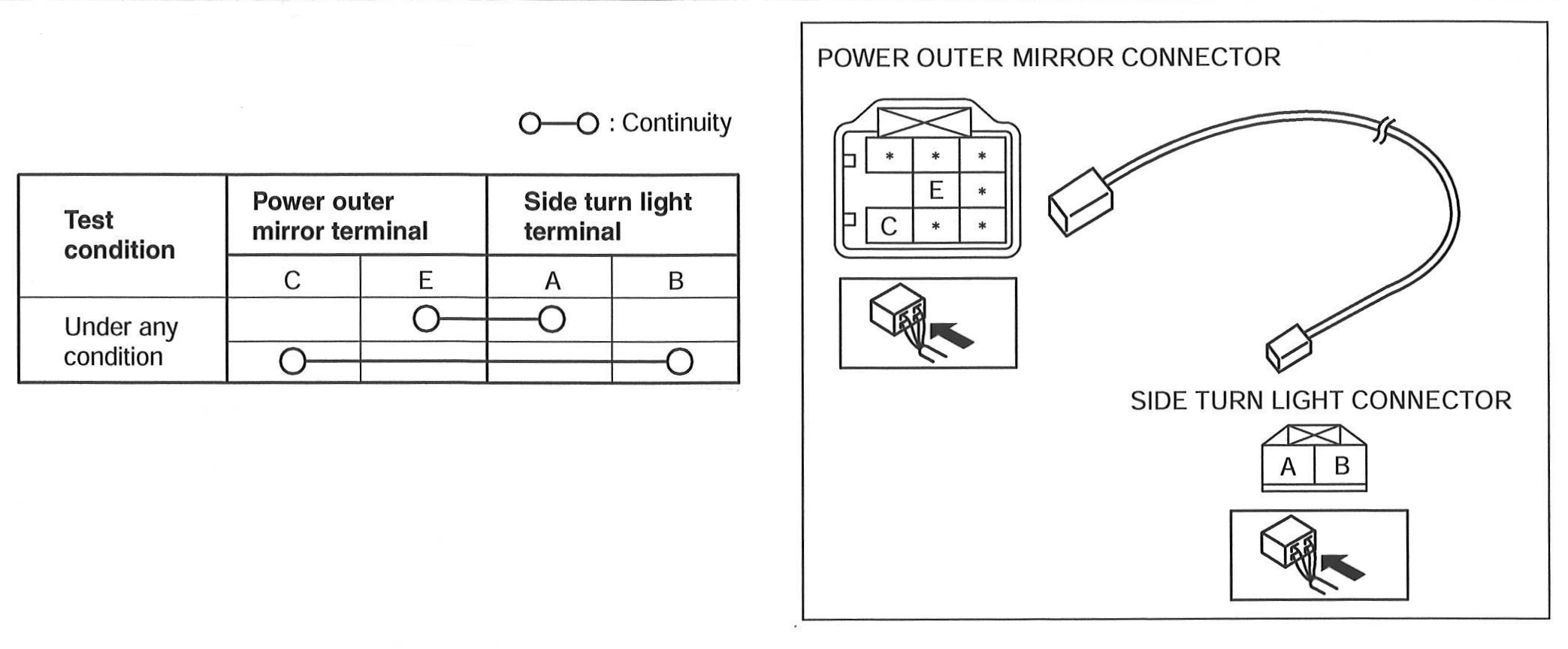

    Fig 1: Checking Side Turn Light Terminal Continuity Table
    G00535429Courtesy of MAZDA MOTORS CORP.
