Connector Bolt Side

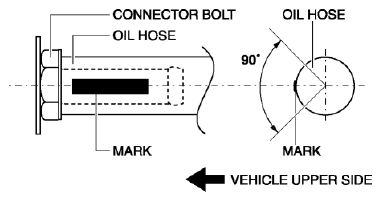

- Install the oil hose to the position shown below.
Courtesy of MAZDA MOTORS CORP.
- Verify that the installation angle of the oil hose is within the range shown below.

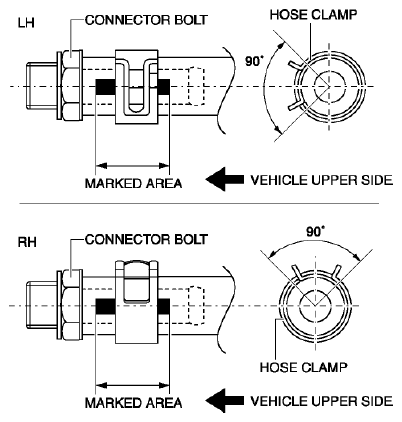

- Install the hose clamp to the position shown below.
Courtesy of MAZDA MOTORS CORP.
- Verify that the hose clamp is within the marked area of the oil hose.
- Verify that the installation angle of the hose clamp is within the range shown below.
- Verify that the hose clamp does not interfere with surrounding the accessories.
NOTE:

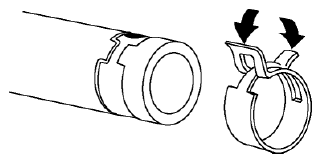

- If the oil hose is to be re-used, install the hose clamp to the impression in the hose left by the previous installation. After installation, apply force to the hose clamp in the direction of the arrows to engage the hose clamp securely.
Courtesy of MAZDA MOTORS CORP.
