Control System Wiring Diagram

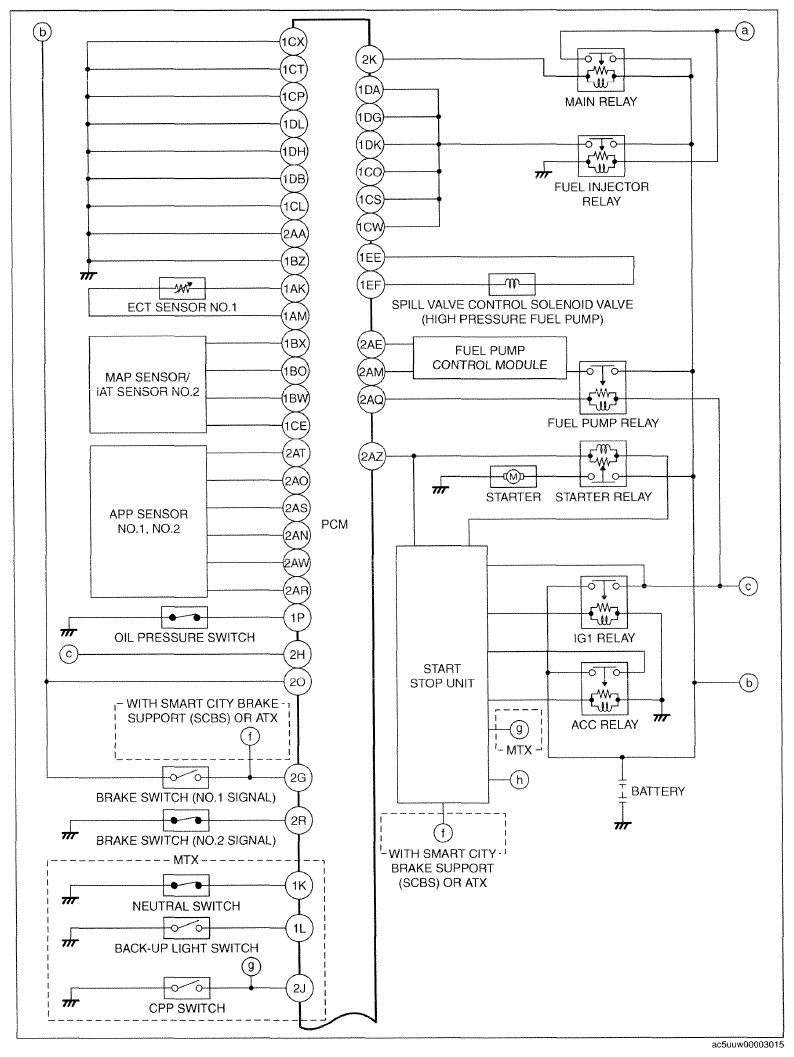

Fig 1: Control System - Wiring Diagram (Skyactiv-G 2.0, Skyactiv-G 2.5; 1 Of 3)

Courtesy of MAZDA MOTORS CORP.

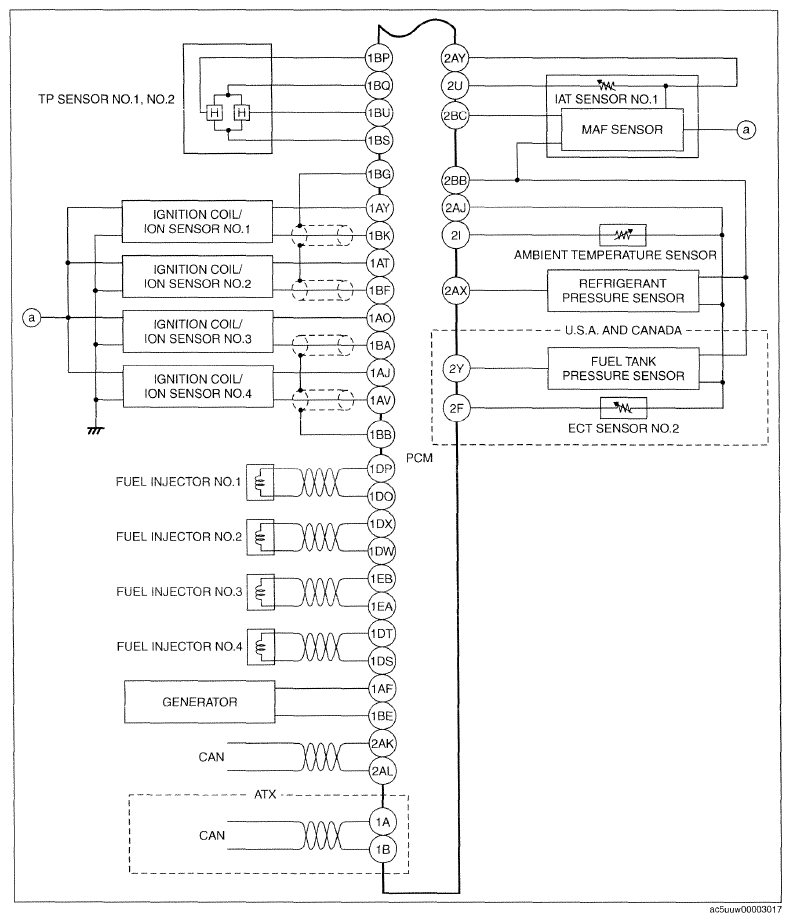

Fig 2: Control System - Wiring Diagram (Skyactiv-G 2.0, Skyactiv-G 2.5; 2 Of 3)

Courtesy of MAZDA MOTORS CORP.

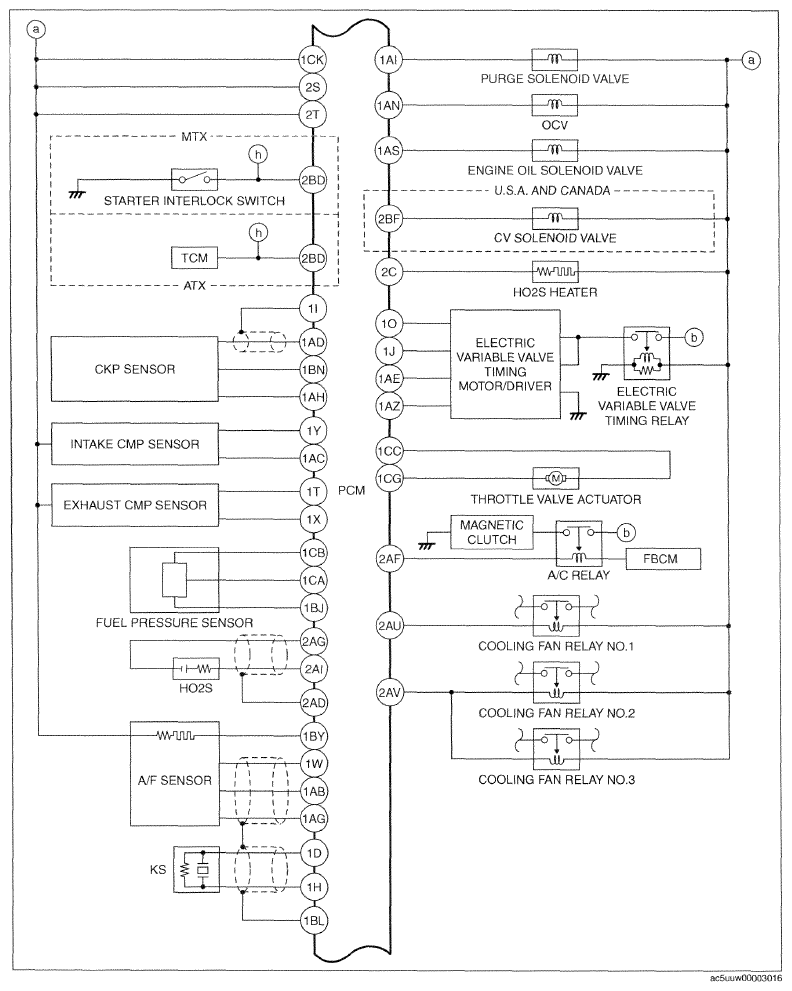

Fig 3: Control System - Wiring Diagram (Skyactiv-G 2.0, Skyactiv-G 2.5; 3 Of 3)

Courtesy of MAZDA MOTORS CORP.
