Water Pipe Installation Note

  1. Assemble the water pipe so that the stud bold is inserted between section A.

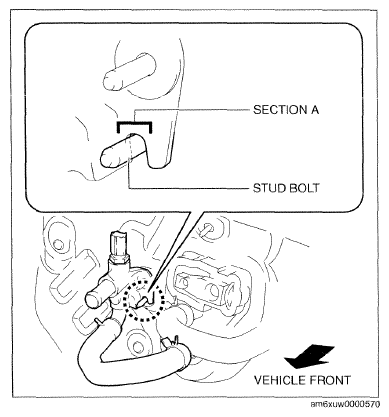

    Fig 1: Identifying Water Pipe Stud Bold
    G09758721Courtesy of MAZDA MOTORS CORP.
