SKYACTIV-G 2.5

Verify that there is no foreign matter caught between the KS unit and cylinder block.
The direction of the KS connector is within the 90-degree angle range shown in the figure.

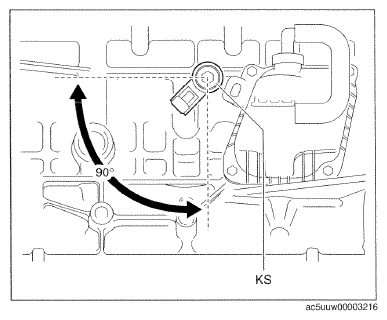

Fig 1: Identifying Knock Sensor Installation Angle Position With In 90-Degree
Courtesy of MAZDA MOTORS CORP.
