Control System Wiring Diagram

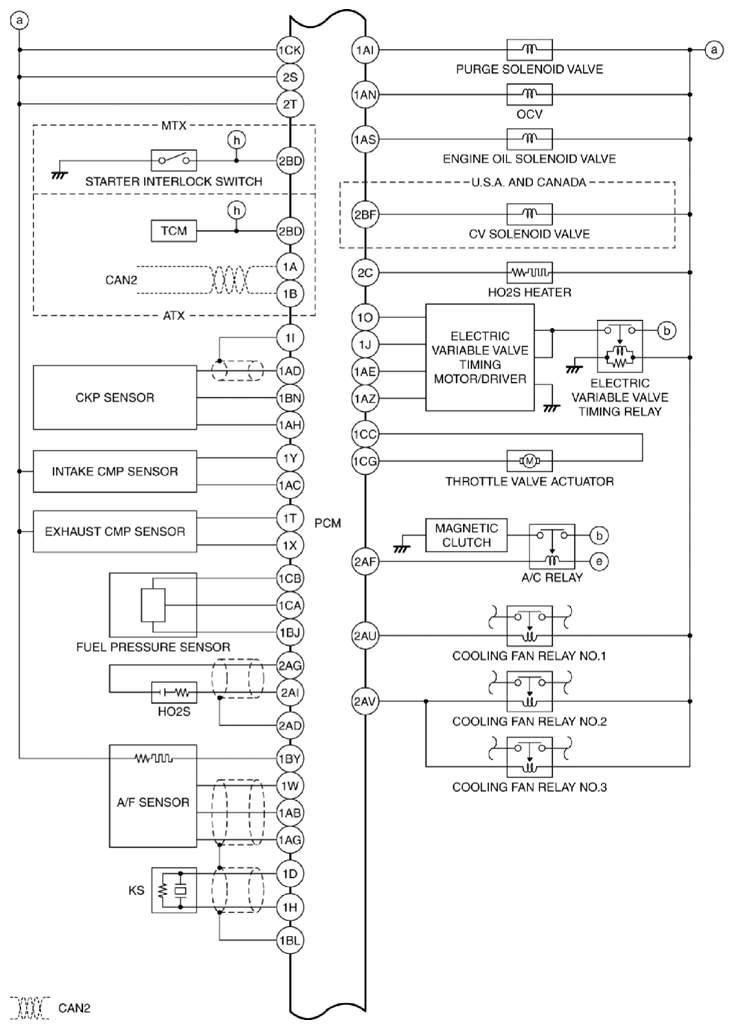

Fig 1: Control System Wiring Diagram (1 Of 3)
Courtesy of MAZDA

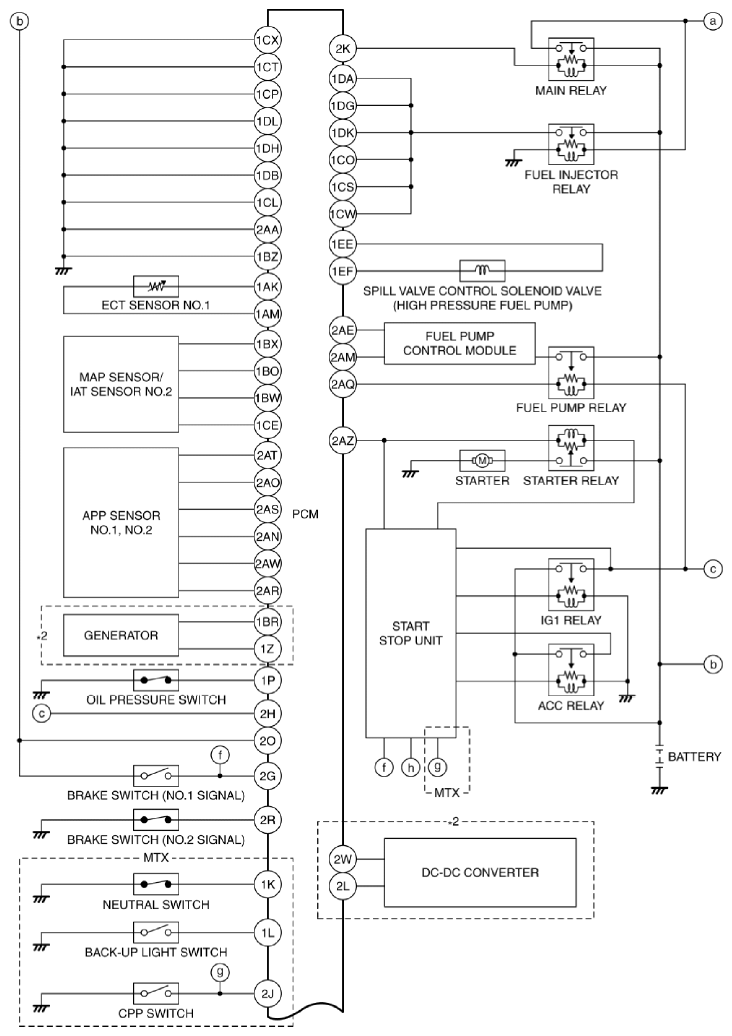

Fig 2: Control System Wiring Diagram (2 Of 3)
Courtesy of MAZDA

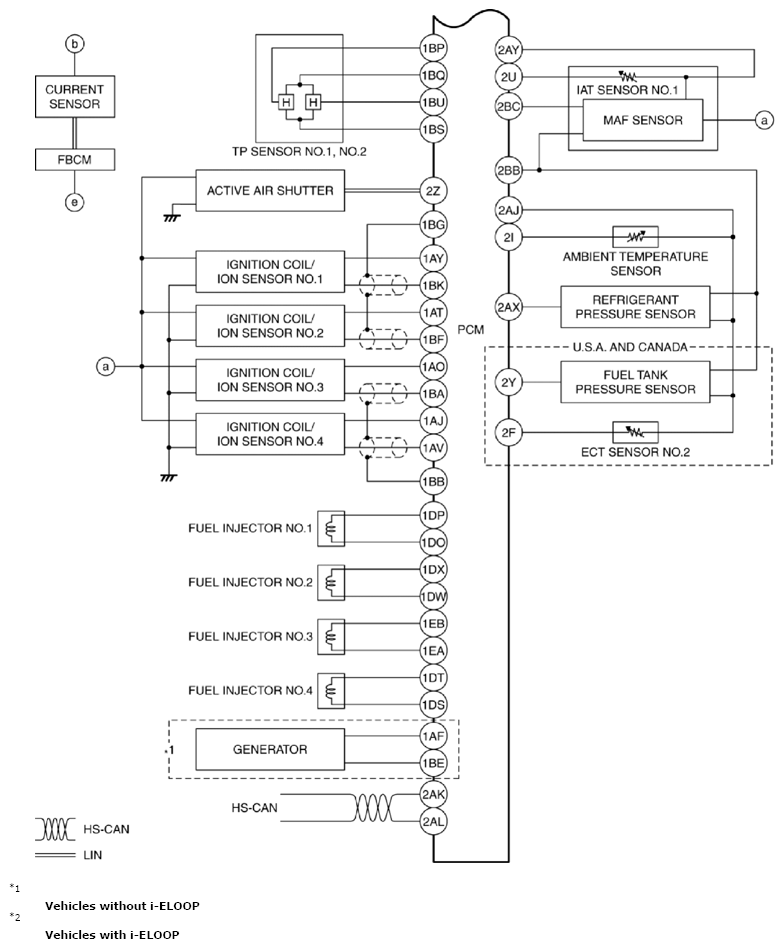

Fig 3: Control System Wiring Diagram (3 Of 3)
Courtesy of MAZDA
Courtesy of MAZDA
Courtesy of MAZDA
Courtesy of MAZDA
