Purge control

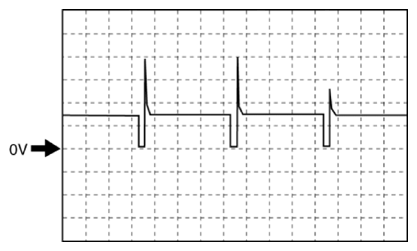

Fig 1: Purge Control Oscilloscope Graph

Courtesy of MAZDA

PCM terminals

• 1AI(+)-body ground(-)

  Oscilloscope setting

• 10 V/DIV (Y), 50 ms/DIV (X), DC range

  Vehicle condition

• Idle after warm up
