3 Sport, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
On-Board Diagnostics - Transmission Control System
>>
On-Board Diagnostic System Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On-Board Diagnostic System Wiring Diagram

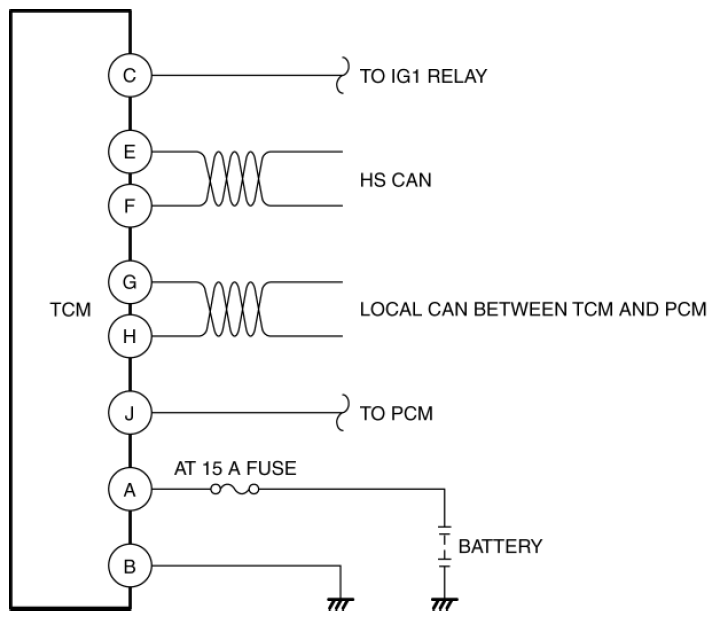

Fig 1: FW 6A-EL On Board Diagnostic System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
