| System malfunction location |
- U101C:00: Radar sensor communication error
- U101D:00: Error signal received from radar sensor
- U1A00:88: CAN communication error (Bus off)
|
| Detection condition |

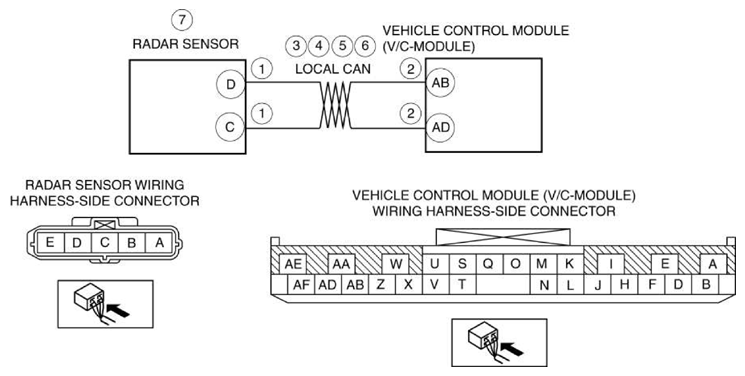

- Communication error between radar sensor and vehicle control module (V/C-module)
|
| Fail-safe |
- Inhibits the Mazda radar cruise control (MRCC) system control
- Inhibits the forward obstruction warning (FOW) system control
|
| Possible cause |
- Connector or terminal malfunction
- Short circuit to power supply or ground in wiring harness between radar sensor and vehicle control module (V/C-module)
- Open circuit in wiring harness between radar sensor and vehicle control module (V/C-module)
- Radar sensor malfunction
- Vehicle control module (V/C-module) malfunction
|
|
|
