Seat Weight Sensor Control Module Removal/Installation [Two-Step Deployment Control System]

CAUTION:

When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the M-MDS. (See SEAT WEIGHT SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)

Switch the ignition to off.
Disconnect the negative battery cable and wait for 1 min or more.

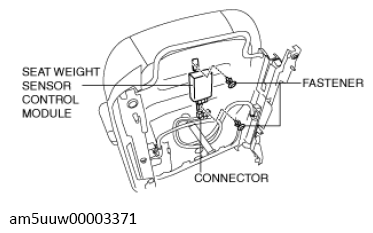

Remove the connector.

Courtesy of MAZDA MOTORS CORP.
Remove the fastener.
Remove the seat weight sensor control module.
Install in the reverse order of removal.
