Power Steering Pipe Component Removal/Installation

NOTE:

• The pressure pipe and return pipe are integrated with the power steering pipe component. Therefore, if any one of the pipes has a malfunction, replace the power steering pipe component.

1. Remove the front mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
2. Remove the splash shield and aerodynamic under cover as a single unit. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
3. Remove the connecting bolt (pump side) from the electric power steering oil pump and disconnect the return hose from the power steering pipe component (return pipe).

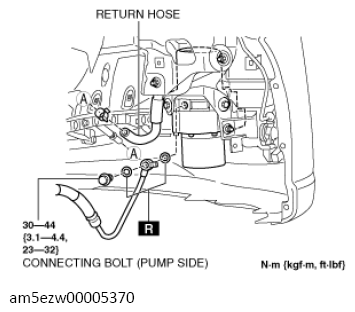

   Fig 1: Return Hose Connecting Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Drain the power steering fluid.
4. Remove the nut shown in the figure.

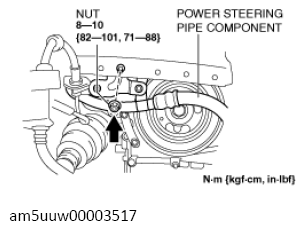

   Fig 2: Power Steering Pipe Component Nut With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

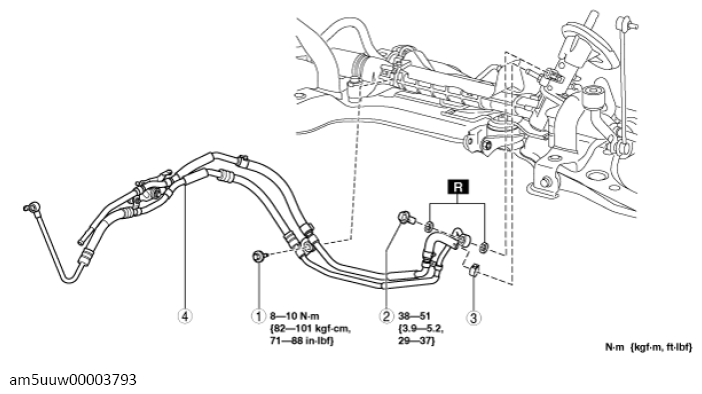

Fig 3: Power Steering Fluid Line Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Bolt
2	Connecting bolt (steering gear side)
3	Hose clips
4	Power steering pipe component
