Selector Cable End (Transaxle side) Removal Note

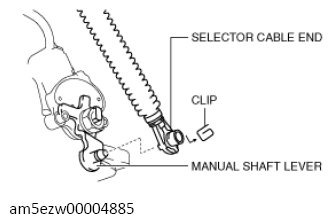

  1. Remove the clip and disconnect the selector cable end (transaxle side) from the manual shaft lever.
    G13727535Courtesy of MAZDA MOTORS CORP.
