DTC U0151-00: SAS Control Module System (Can2 Line Malfunction) (DSC): Notes
DTC U0151:00 (DYNAMIC STABILITY CONTROL) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
U0151:00 |
SAS control module system (CAN2 line malfunction) |
| DETECTION CONDITION |
- Communication error with SAS control module is detected in CAN communication.
|
| FAIL-SAFE FUNCTION |
- Illuminates the TCS/DSC indicator light.
- Inhibits the TCS (engine control) and DSC controls.
|
| POSSIBLE CAUSE |
- SAS control module malfunction

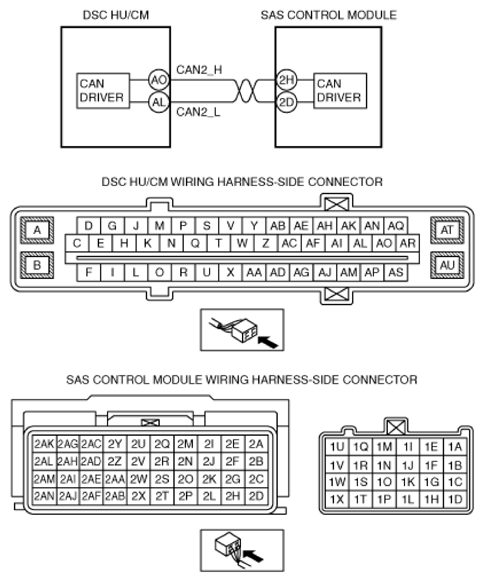

- Open or short circuit in the CAN2_H wiring harness between DSC HU/CM terminal AO and SAS control module terminal 2H
- Open or short circuit in the CAN2_L wiring harness between DSC HU/CM terminal AL and SAS control module terminal 2D
- DSC HU/CM malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
