Fuse Block Removal/Installation: Installation

Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull the wiring harness in the direction of the arrow (2) while pressing the stopper to detach the fuse terminal from the stopper.

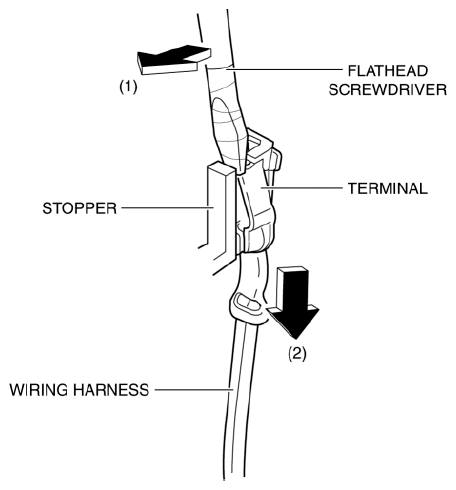

Fig 1: Pulling Out Fuse Block Wiring Harness
Courtesy of MAZDA MOTORS CORP.
Relocate all fuse terminals to the new fuse block.
CAUTION:
- If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the fuse block, line up the fuse blocks of old and news parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.

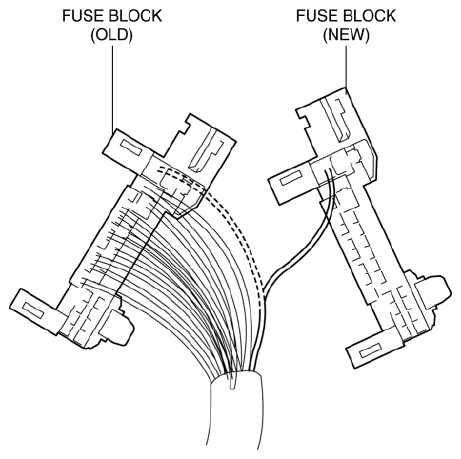

  Fig 2: Caution - Relocating Fuse Block Terminals
  Courtesy of MAZDA MOTORS CORP.
- A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.
Install the fuse block clip to the body.

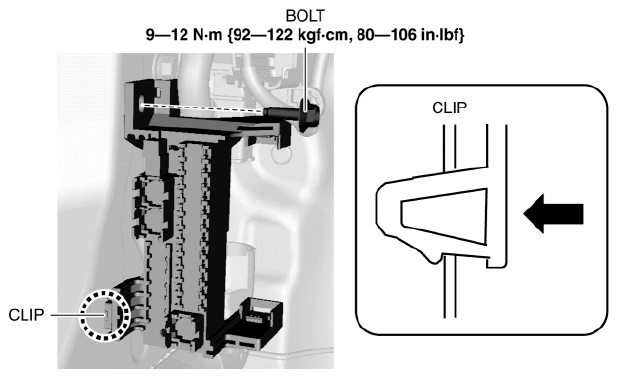

Fig 3: Installing Fuse Block Clip
Courtesy of MAZDA MOTORS CORP.
Install the bolt.
Install the bands shown in the figure.

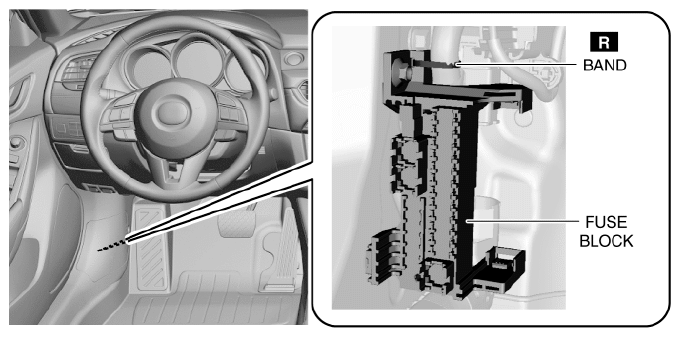

Fig 4: Identifying Fuse Block Band
Courtesy of MAZDA MOTORS CORP.
Install all the fuses.
Install the following parts:
1. LF control unit (with advanced keyless entry system) (See LF CONTROL UNIT REMOVAL/INSTALLATION .)
2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Perform the "Verify Fuse Block Replacement". (See VERIFY FUSE BLOCK REPLACEMENT .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
