Pattern 1

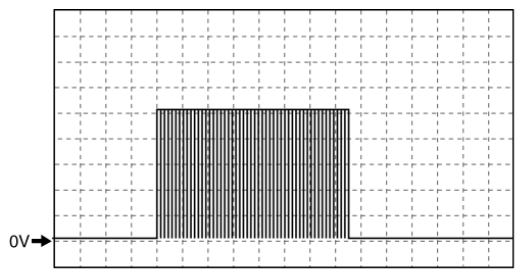

Fig 1: LF Control Unit Voltage Pattern

G10987852

Courtesy of MAZDA MOTORS CORP.

LF control unit: H (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 100 ms/DIV (X), DC range
