Relay Location

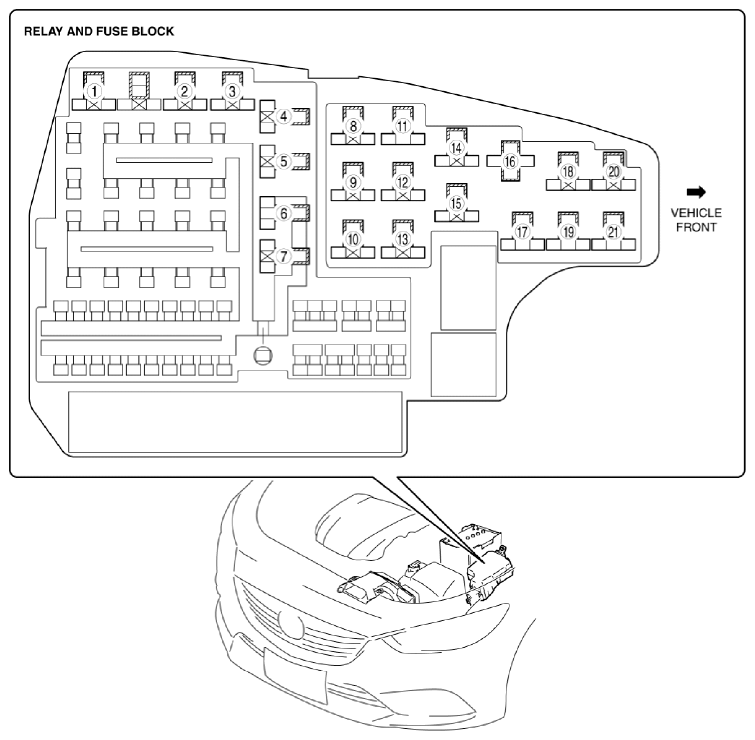

Fig 1: Identifying Relay And Fuse Box Related Components

Courtesy of MAZDA MOTORS CORP.

RELAY AND FUSE BOX RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
1	TNS Relay
2	A/C Relay
3	Headlight Hi Relay
4	Fuel Injector Relay
5	Fuel Pump Relay
6	Headlight Lo Relay
7	IG1 Relay
8	Starter Relay
9	-
10	Horn Relay
11	Brake Light Relay
12	ACC Relay
13	Cooling Fan Relay No. 1
14	Electric Variable Valve Timing Relay
15	Cooling Fan Relay No. 2
16	Blower Relay
17	DRL Relay
18	Rear Window Defogger Relay
19	Cooling Fan Relay No. 3
