Troubleshooting Procedure

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

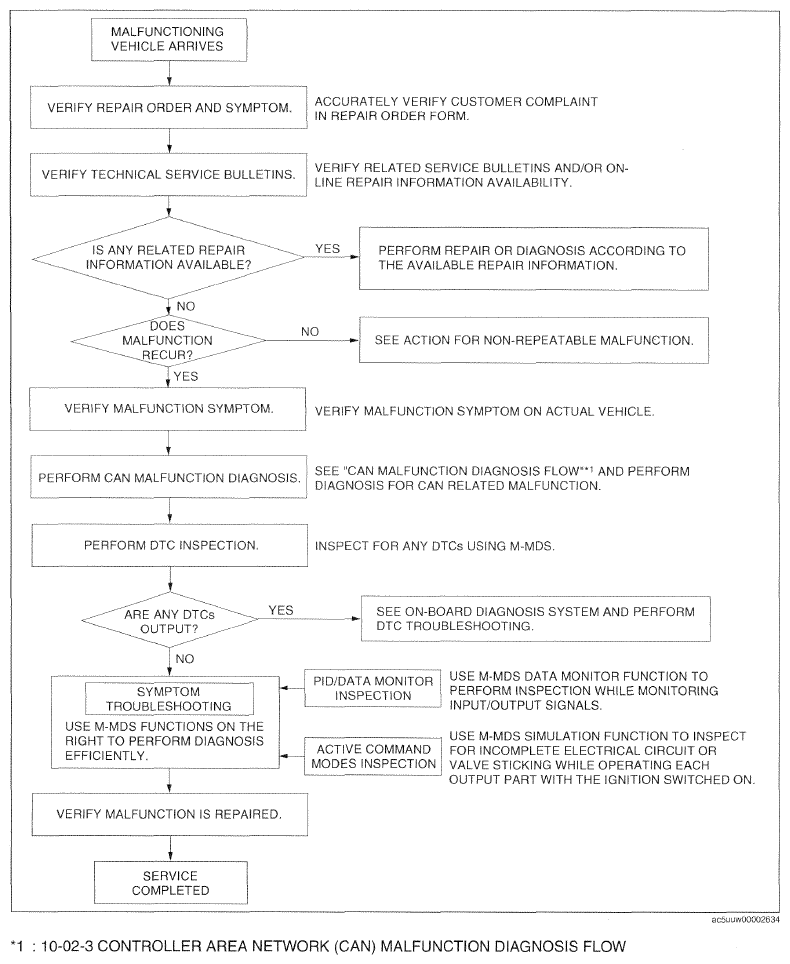

Fig 1: Troubleshooting Procedure Flow Chart
G09786666Courtesy of MAZDA MOTORS CORP.
