Symptom Troubleshooting - Power Window Systems
>>
Power Window System Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power Window System Wiring Diagram
Power window main switch

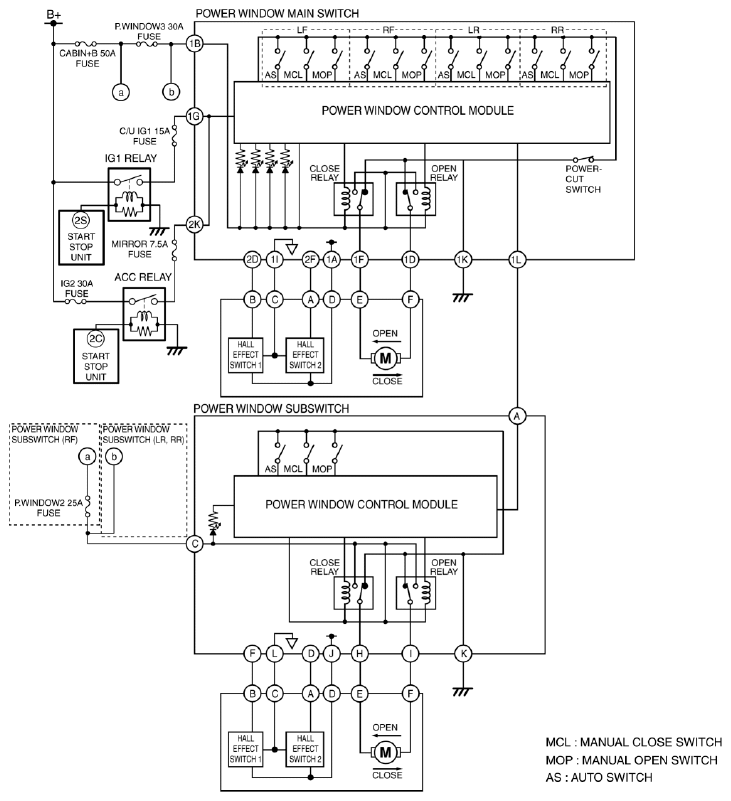

Fig 1: Power Window System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
