Steering Lock Function Does Not Operate [Security And Locks]: Notes

Description  Switch the ignition from ON (engine off or on) to OFF and do not lock the steering when opening/closing the door.
Possible Causes

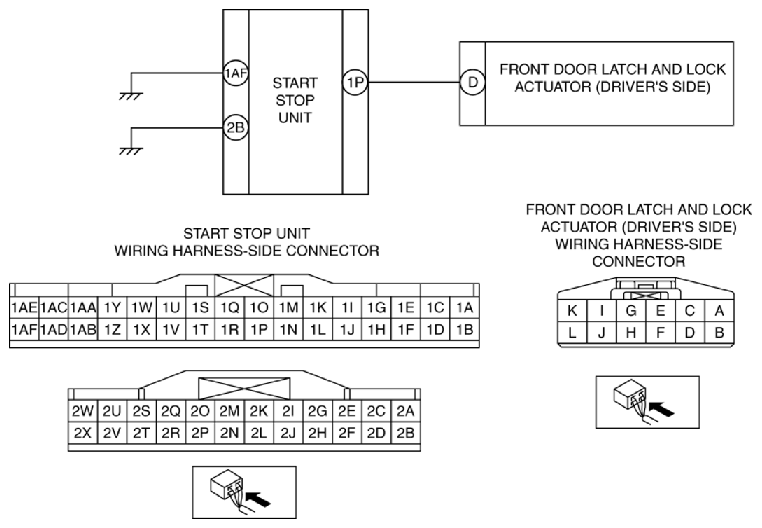

  • Open circuit in wiring harness between the following terminals:
    • Start stop unit terminal 1P and front door lock link switch (driver's side) terminal D
    • Start stop unit terminal 1AF and ground
    • Start stop unit terminal 2B and ground
  • Short to ground in wiring harness between start stop unit terminal 1P and front door lock link switch (driver's side) terminal D
G10913879
