Position Memory Switch Removal/Installation

WARNING:

Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the appropriate Service Information before handling the front seat (side air bag integrated). For TWO-STEP DEPLOYMENT CONTROL SYSTEM, see AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] and AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] . For STANDARD DEPLOYMENT CONTROL SYSTEM, see AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] and AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

Switch the ignition OFF (LOCK).
Disconnect the negative battery cable and wait for 1 min . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)

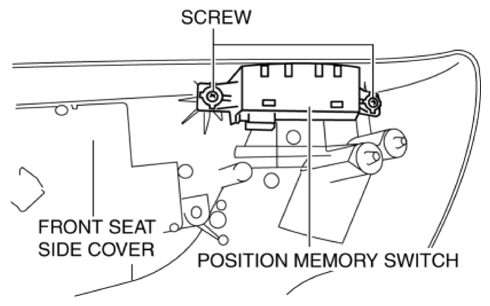

Remove the screws.

Fig 1: Power Seat Switch Terminals Continuity Chart (Passenger Side)
Courtesy of MAZDA MOTORS CORP.
Remove the position memory switch.
Install in the reverse order of removal.
