Remote Cable

CAUTION:

If the remote cables are not routed and installed correctly, it may cause mis-operation of a rear seat back, abnormal noise, or damage to the remote cable. Install the remote cables according to the following procedure.

Install the remote cables according to the following procedure.
1. Route the remote cables (center) under the rear hinge as shown in the figure.
2. Route the remote cables (LH/RH) through the ISO FIX anchors from top to bottom as shown in the figure.
3. Place the case on the mat behind the rear seat cushion.

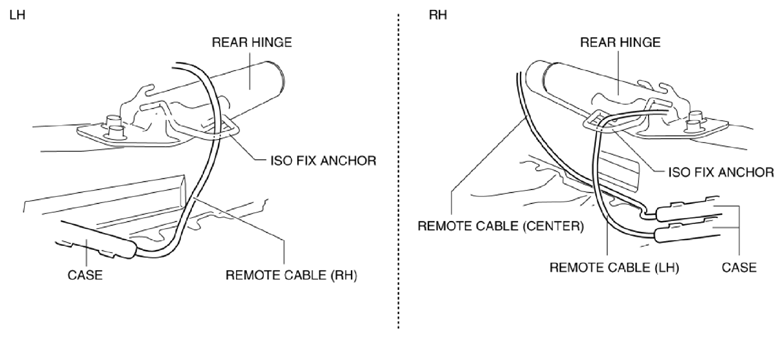

Fig 1: Identifying Remote Cable And Case
Courtesy of MAZDA MOTORS CORP.
After installing the remote cables, wobble the rear seat backs forward and back to verify that the rear seat backs are securely locked into the rear seat back strikers.

NOTE:

If there is a malfunction in locking, adjust the fixed position of the cable in the case.
