Indicator Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  4. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

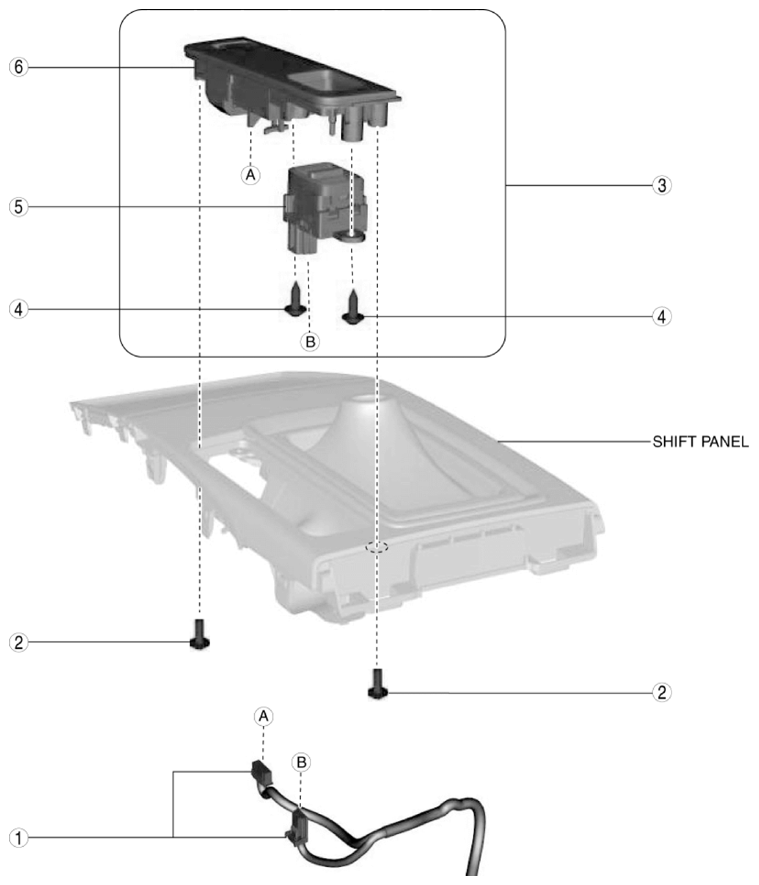

    Fig 1: Identifying Indicator Components
    G10937320Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Connector
    2 Screw
    3 Indicator component
    4 Screw
    5 Drive selection switch
    6 Indicator
