Not P Position Switch Inspection

NOTE:

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Perform the following procedure to remove the selector lever knob.
NOTE:
- If the servicing is difficult, release the shift lock manually and shift the selector lever to the N position.

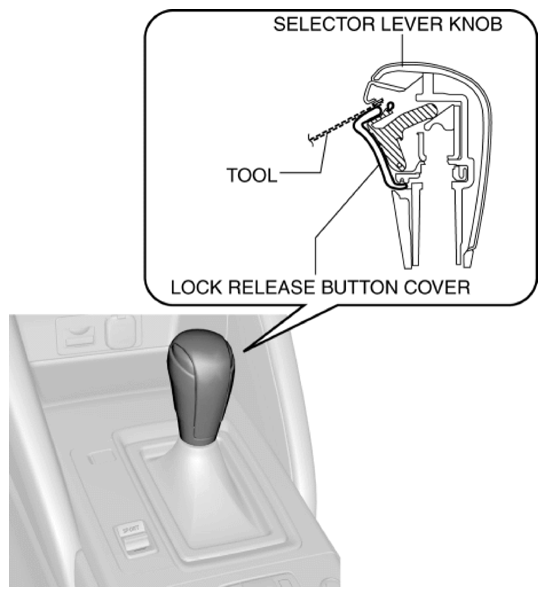

1. Insert the tool (width: 6 mm {0.2 in} or less, thickness: 1 mm {0.04 in} or less) as shown in the figure.

  Fig 1: Inserting Tool In Selector Lever Knob
  Courtesy of MAZDA MOTORS CORP.

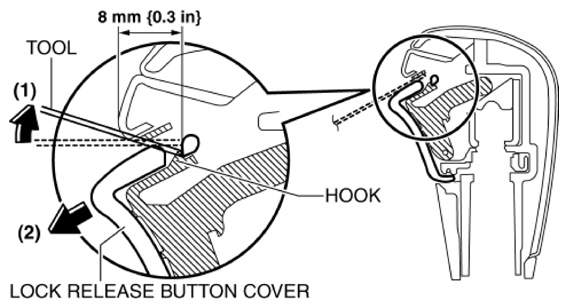

2. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move the lock release button cover in the direction of arrow (2) in the figure and remove it.

  Fig 2: Removing Lock Release Button Cover
  Courtesy of MAZDA MOTORS CORP.

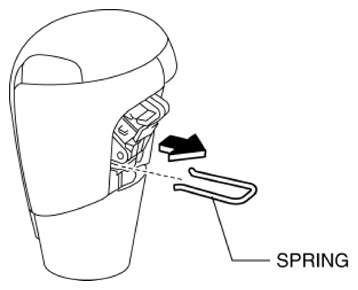

3. Remove the spring.

  Fig 3: Removing Spring
  Courtesy of MAZDA MOTORS CORP.

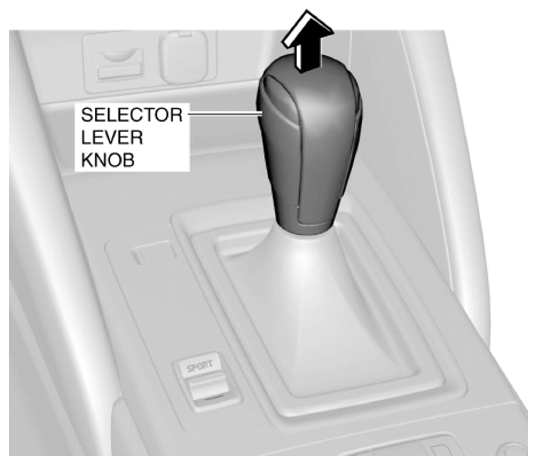

4. Remove the selector lever knob.
Fig 4: Removing Selector Lever Knob
Courtesy of MAZDA MOTORS CORP.
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
6. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
7. Front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)

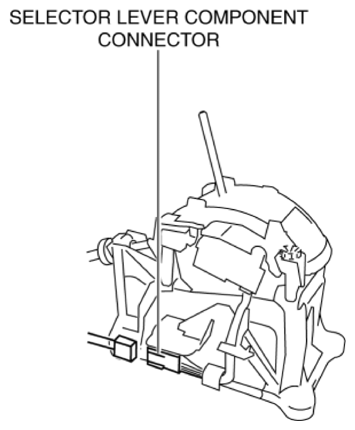

Disconnect the selector lever component connector.

Fig 5: Identifying Selector Lever Component Connector
Courtesy of MAZDA MOTORS CORP.

Verify that the continuity between selector lever component terminals B and I.

Fig 6: Identifying Selector Lever Component Connector End View

Courtesy of MAZDA MOTORS CORP.

If not as verified, replace the selector lever component. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

P POSITION SWITCH SPECIFICATION

Test condition	Continuity
Selector lever is in the P position.	No continuity
Selector lever is not in the P position.	Continuity
