| Description |
Power liftgate (PLG) touch sensor (LH) circuit malfunction |
| Detection condition |
- Power liftgate (PLG) control module detected an open circuit in the power liftgate (PLG) touch sensor (LH) circuit for 0.1 s or more
.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- Power liftgate (PLG) touch sensor (LH) connector or terminal malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

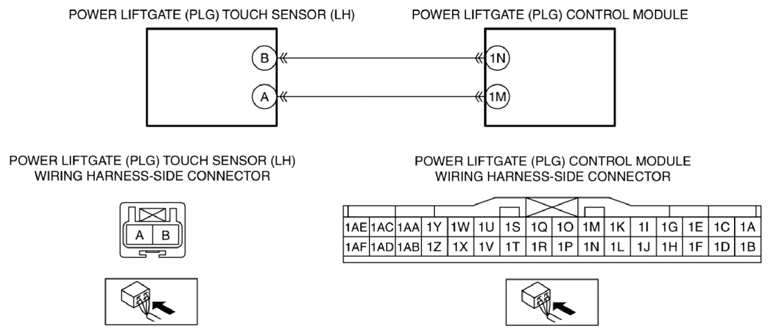

- Open circuit in wiring harness between the following terminals:
- Power liftgate (PLG) touch sensor (LH) terminal B-Power liftgate (PLG) control module terminal 1N
- Power liftgate (PLG) touch sensor (LH) terminal A-Power liftgate (PLG) control module terminal 1M
- Power liftgate (PLG) touch sensor (LH) malfunction
- Power liftgate (PLG) control module malfunction
|
|
|
