| Description |
Power liftgate (PLG) touch sensor (RH) circuit malfunction |
| Detection condition |
- Power liftgate (PLG) control module detected a short circuit to ground in the power liftgate (PLG) touch sensor (RH) circuit for 5 min or more.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- Power liftgate (PLG) touch sensor (RH) connector or terminal malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

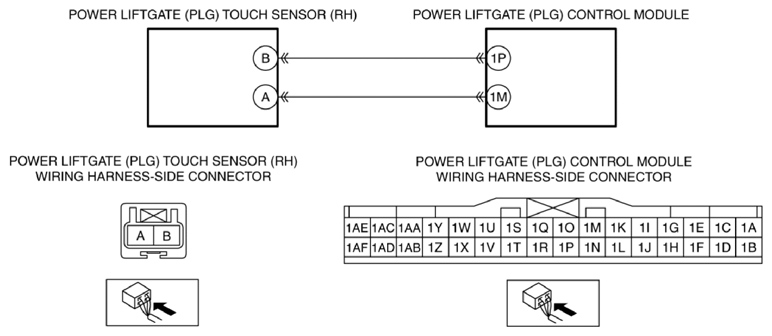

- Short to ground in wiring harness between power liftgate (PLG) touch sensor (RH) terminal B and power liftgate (PLG) control module terminal 1P
- Power liftgate (PLG) touch sensor (RH) malfunction
- Power liftgate (PLG) control module malfunction
|
|
|
