Troubleshooting Procedure

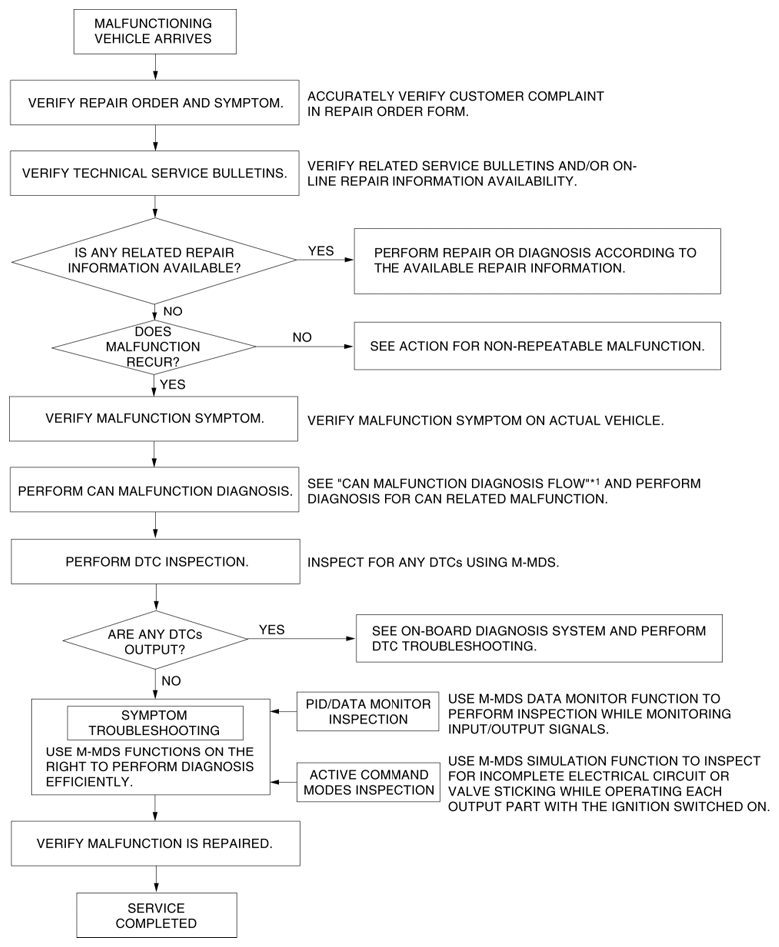

Fig 1: Vehicle Malfunction Troubleshooting Procedure Flowchart
G10948996Courtesy of MAZDA

*1 (Refer to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
