Connector Connection-PCM

CAUTION:
  • Do not touch the PCM connector terminal. The terminal is extremely thin and can be damaged by touching it.
  • If the PCM connector is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the PCM connector is inserted straight.

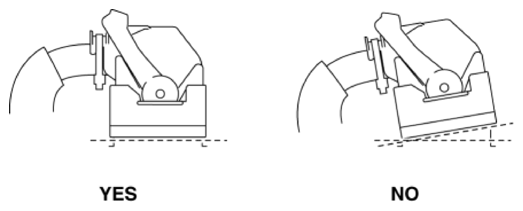

Fig 1: Caution For Inserting PCM Connector
G10951962Courtesy of MAZDA MOTORS CORP.
  1. Set the PCM connector to the position shown in the figure.

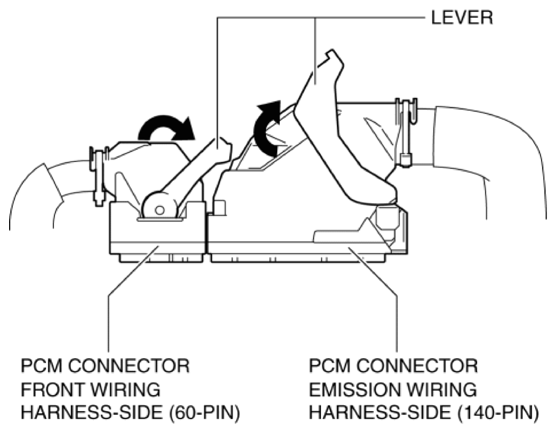

    Fig 2: Setting PCM Connector Position
    G10951963Courtesy of MAZDA MOTORS CORP.
  2. Align the PCM connector straight against the connection surface.

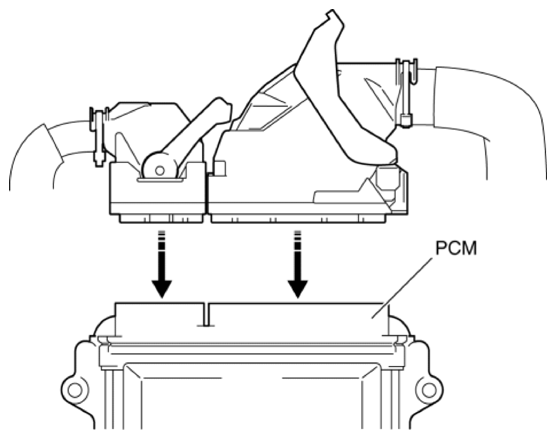

    Fig 3: Aligning PCM Connector Straight Against Connection Surface
    G10951964Courtesy of MAZDA MOTORS CORP.
  3. Insert the PCM connector straight and press it in until the lever moves up naturally. (Front wiring harness-side connector)

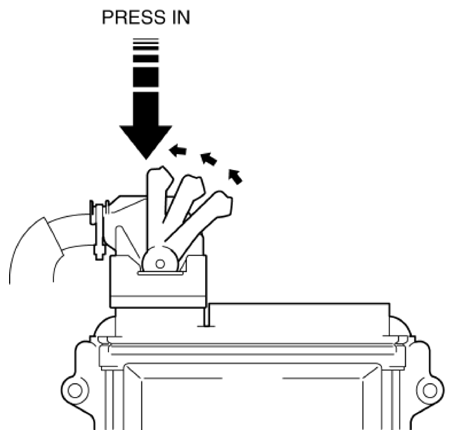

    Fig 4: Inserting PCM Connector
    G10951965Courtesy of MAZDA MOTORS CORP.
  4. Press the PCM connector lever until a click sound is heard.

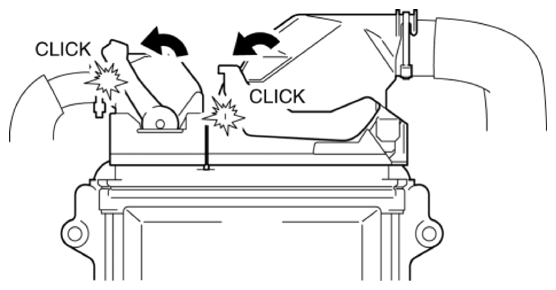

    Fig 5: Pressing PCM Connector Lever
    G10951966Courtesy of MAZDA MOTORS CORP.
