Relay And Fuse Block Removal/Installation: Installation

CAUTION:
  • If the terminal is installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the relay and fuse block, always reposition terminals one by one and perform the following procedures correctly so that the installation positions are correct.
NOTE:
  • For easier access when performing terminal relocation, disassemble the relay and fuse block before removing the terminal.

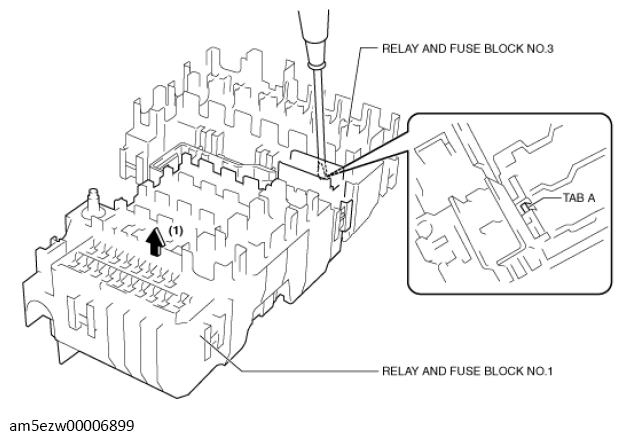

  1. Remove relay and fuse block No. 1 from relay and fuse block No. 3 in the direction of the arrow (1) shown in the figure with tab A of relay and fuse block No. 1 released.
    G13728681Courtesy of MAZDA MOTORS CORP.

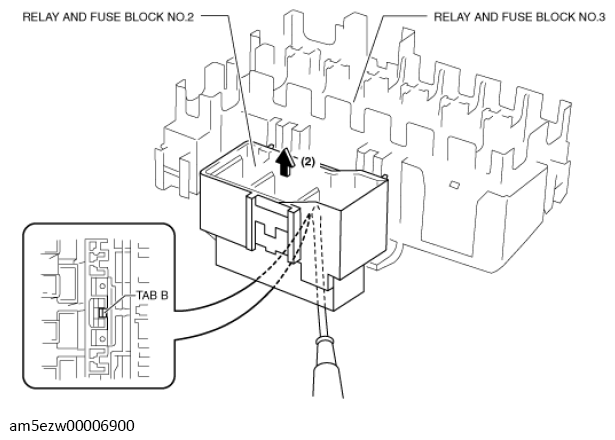

  2. Remove relay and fuse block No. 2 from relay and fuse block No. 3 in the direction of the arrow (2) shown in the figure with tab B of relay and fuse block No. 2 released.
    G13728682Courtesy of MAZDA MOTORS CORP.

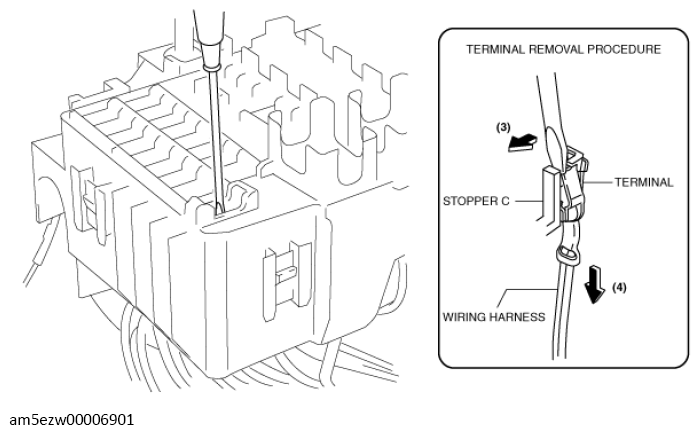

  3. Move the flathead screwdriver in the direction of the arrow (3) shown in the figure, release stopper C, pull the wiring harness in the direction of the arrow (4), and then remove the terminal from the relay and fuse block.
    G13728683Courtesy of MAZDA MOTORS CORP.

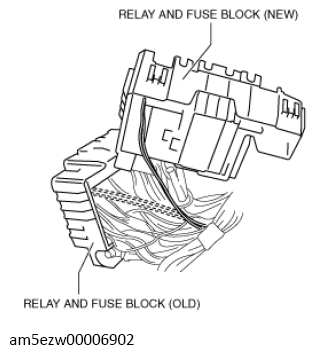

  4. For terminal relocation, line up the relays and fuse blocks of old and news parts and always verify each of the wiring harnesses in the wiring diagram.
    G13728684Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • A terminal disconnection could cause electronic components and the system to not operate due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.
    NOTE:
    • This procedure is performed for relay and fuse blocks No. 1, 2, and 3.

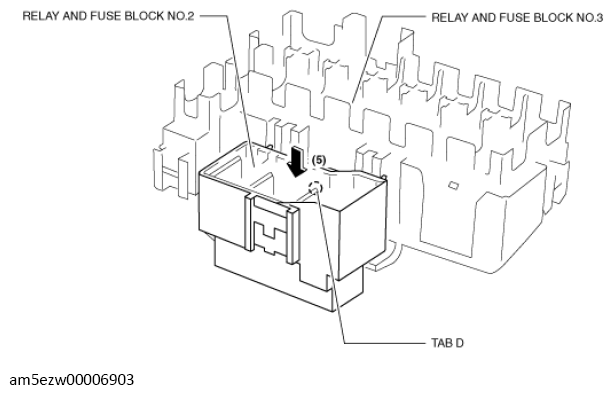

  5. Move relay and fuse block No. 2 in the direction of the arrow (5) shown in the figure and install it to relay and fuse block No. 3.
    G13728685Courtesy of MAZDA MOTORS CORP.

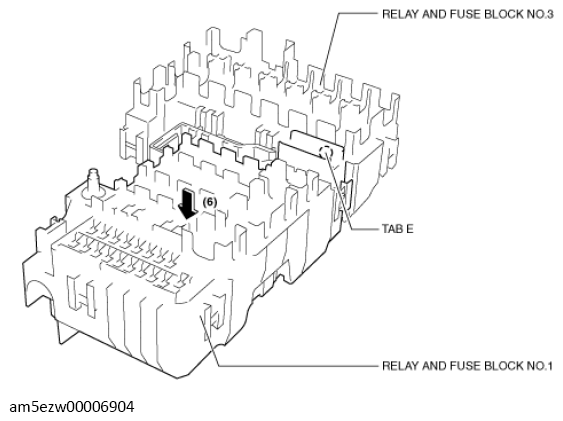

  6. Move relay and fuse block No. 1 in the direction of the arrow (6) shown in the figure and install it to relay and fuse block No. 3.
    G13728686Courtesy of MAZDA MOTORS CORP.
  7. Install all the relays and fuses.
  8. Install bolt A.

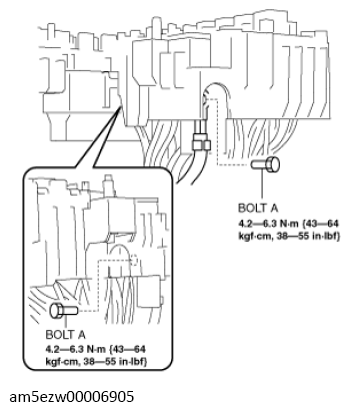

    Fig 1: Relay And Fuse Block Bolts With Torque Specification
    G13728687Courtesy of MAZDA MOTORS CORP.
  9. Connect the relay and fuse block connector.

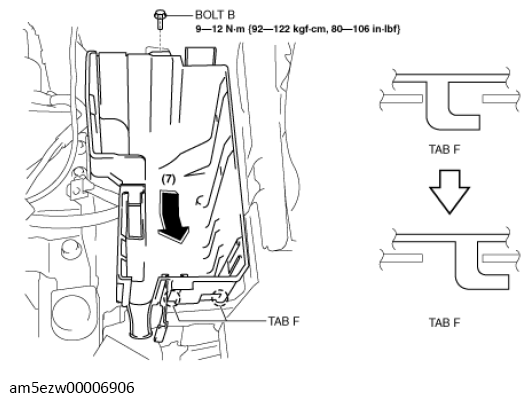

  10. Insert tab F into the wheel apron panel (front) and install the relay and fuse block lower cover in the direction of the arrow (7) shown in the figure.
    Fig 2: Relay And Fuse Block Lower Cover Bolt With Torque Specification
    G13728688Courtesy of MAZDA MOTORS CORP.
  11. Install bolt B.
  12. Install nut C and the wiring harness.
    Fig 3: Wiring Harness Nut C With Torque Specification
    G13728689Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • For easier access after relay and fuse block replacement, do not assemble the relay and fuse block to the relay and fuse block lower cover.

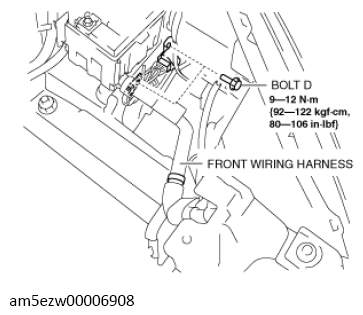

  13. Install securing bolt D with the ground wire branching from the front wiring harness.
    Fig 4: Front Wiring Harness Bolts D With Torque Specification
    G13728690Courtesy of MAZDA MOTORS CORP.
  14. Install the following parts.
    1. Battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION .)
    2. PCM connectors. (See BATTERY REMOVAL/INSTALLATION .)
    3. PCM cover No. 1. (See BATTERY REMOVAL/INSTALLATION .)
    4. Battery. (See BATTERY REMOVAL/INSTALLATION .)
    5. Battery clamp. (See BATTERY REMOVAL/INSTALLATION .)
    6. Battery box. (See BATTERY REMOVAL/INSTALLATION .)
    7. Positive battery cable. (See BATTERY REMOVAL/INSTALLATION .)
    8. Fresh-air duct (No. 3). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    9. Air cleaner case. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    10. Air cleaner element. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    11. Air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    12. Resonance chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    13. Air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    14. MAF/IAT sensor connectors. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  15. After relay and fuse block replacement, perform verification. (See VERIFY RELAY AND FUSE BLOCK REPLACEMENT .)
  16. Verify that there is no malfunction after relay and fuse block replacement, and assemble the relay and fuse block to the relay and fuse block lower cover.

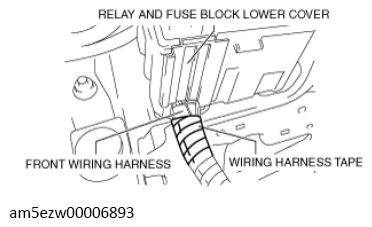

  17. Secure the relay and fuse block lower cover and front wiring harness using wiring harness tape.
    G13728675Courtesy of MAZDA MOTORS CORP.

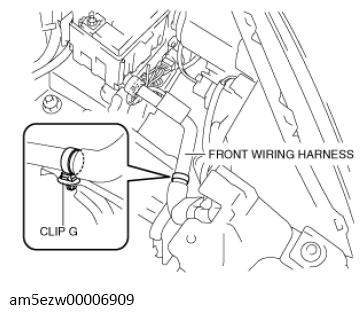

  18. Install front wiring harness securing clip G.
    G13728692Courtesy of MAZDA MOTORS CORP.

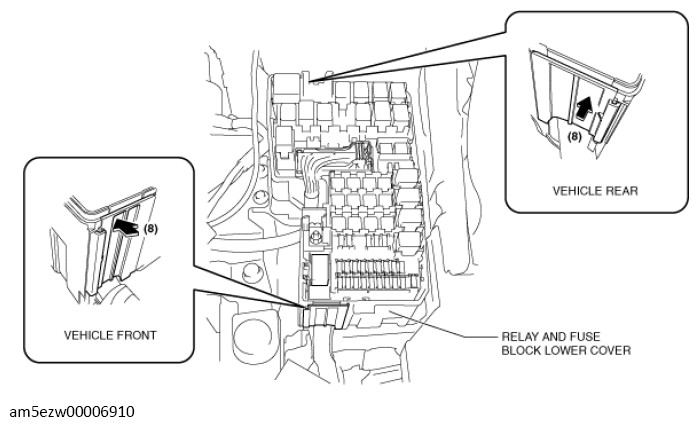

  19. Close the cover of the relay and fuse block lower cover in the direction of the arrow (8) shown in the figure.
    G13728693Courtesy of MAZDA MOTORS CORP.

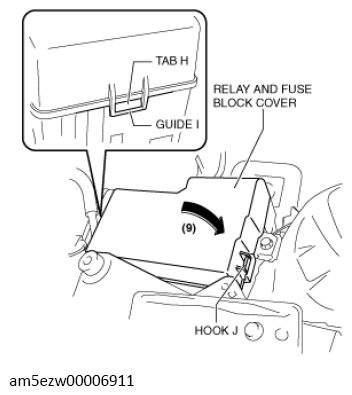

  20. Tilt the relay and fuse block cover in the direction of the arrow (9) shown in the figure while hooking guide I to tab H to engage with hook J.
    G13728694Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If tab H is installed after engaging hook J, the relay and fuse block cover could be damaged. Hook guide I to tab H before installing the relay and fuse block cover.
  21. Connect the negative battery cable.
  22. Install the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  23. Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
