Plug Hole Plate Removal/Installation

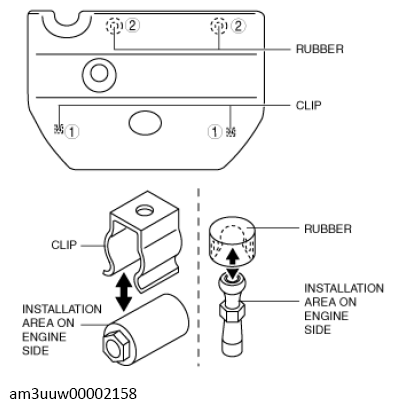

  1. Remove the plug hole plate in the order indicated in the figure.
    NOTE:
    • Lift off and remove the plug hole plate from the installation areas as shown in the figure.
    G13726561Courtesy of MAZDA MOTORS CORP.
  2. Install the plug hole plate in the reverse order of removal.
