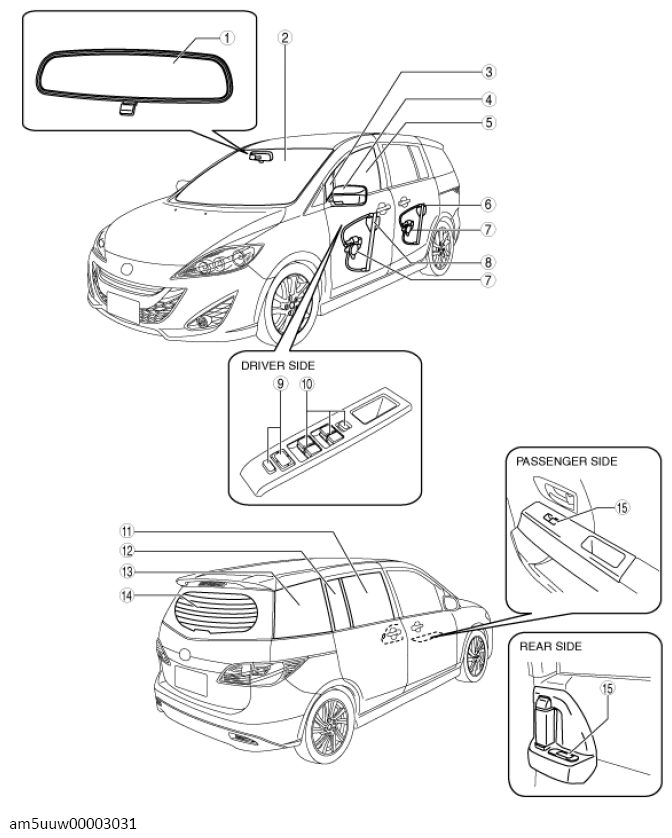

| 1 |
Rearview mirror
(See REARVIEW MIRROR REMOVAL .)
(See REARVIEW MIRROR INSTALLATION .) |
| 2 |
Windshield
(See WINDSHIELD REMOVAL .)
(See WINDSHIELD INSTALLATION .) |
| 3 |
Front door quarter glass
(See FRONT DOOR QUARTER GLASS REMOVAL/INSTALLATION .) |
| 4 |
Power outer mirror
(See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR INSPECTION .)
(See OUTER MIRROR GLASS REMOVAL .)
(See OUTER MIRROR GLASS INSTALLATION .)
(See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .) |
| 5 |
Front door glass
(See FRONT DOOR GLASS REMOVAL/INSTALLATION .) |
| 6 |
Rear power window regulator
(See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) |
| 7 |
Power window motor
(See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
(See POWER WINDOW MOTOR INSPECTION .) |
| 8 |
Front power window regulator
(See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .) |
| 9 |
Power outer mirror switch
(See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR SWITCH INSPECTION .) |
| 10 |
Power window main switch
(See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW MAIN SWITCH INSPECTION .)
(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
(See TWO-STEP DOWN FUNCTION ACTIVATION/DEACTIVATION SWITCHING PROCEDURE .)
(See DOOR GLASS POSITION CHANGE PROCEDURE .)
(See PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 11 |
Sliding door glass
(See SLIDING DOOR GLASS REMOVAL/INSTALLATION .) |
| 12 |
Sliding door quarter glass
(See SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION .) |
| 13 |
Quarter window glass
(See QUARTER WINDOW GLASS REMOVAL .)
(See QUARTER WINDOW GLASS INSTALLATION .) |
| 14 |
Rear window glass
(See REAR WINDOW GLASS REMOVAL .)
(See REAR WINDOW GLASS INSTALLATION .)
(See FILAMENT INSPECTION .)
(See FILAMENT REPAIR .) |
| 15 |
Power window subswitch
(See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW SUBSWITCH INSPECTION .) |
