Oil Cooler Installation Note

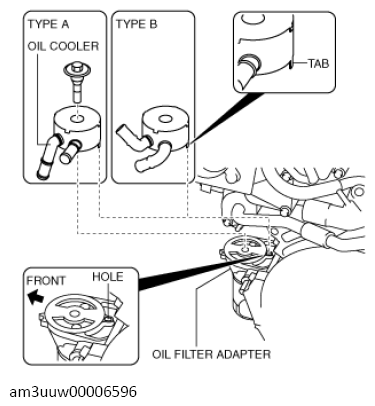

  1. Align one of the positioning tabs on the oil cooler as shown in the figure to the oil filter adapter hole, and install the oil cooler.
G13726654Courtesy of MAZDA MOTORS CORP.
