A/C Unit Installation Nut Removal Note

NOTE:

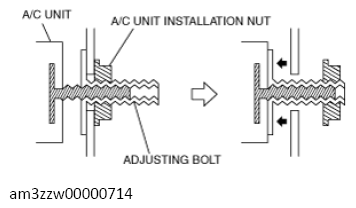

  • If the adjusting bolt rotates when removing the A/C unit nut, keep rotating the nut. The adjusting bolt stops rotating when it contacts the A/C unit and the nut can be removed.
G13728839Courtesy of MAZDA MOTORS CORP.
