Security Indicator Light: 13, DTC B10D7-05/P1260-00: Key Id Number Programming Error [Immobilizer System]: Notes

SECURITY INDICATOR LIGHT: 13, DTC: B10D7:05/P1260:00 (IMMOBILIZER SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE

SECURITY INDICATOR LIGHT: 13 DTC: INSTRUMENT CLUSTER B10D7:05/PCM P1260:00	Key ID number programming error
DETECTION CONDITION	Instrument cluster detects the key ID number programming failure.
FAIL-SAFE FUNCTION	-

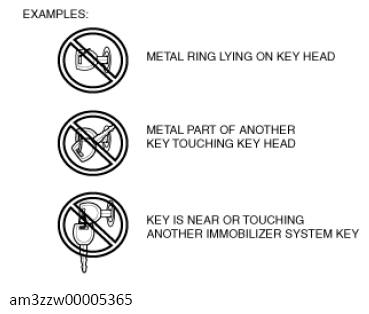

POSSIBLE CAUSE	Failure during programming key ID number NOTE: If any of the following items are touching or near key head, signal communication between key and vehicle is negatively affected, resulting in engine not starting: Spare keys Keys for other vehicles equipped with an immobilizer system Any metallic object Any electronic device, or any credit or other card with magnetic strips PCM malfunction Courtesy of MAZDA MOTORS CORP.
SYSTEM WIRING DIAGRAM	-
