Driver-Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

Switch the ignition to off.
Disconnect the negative battery cable and wait for 1 min or more.
Remove the covers.

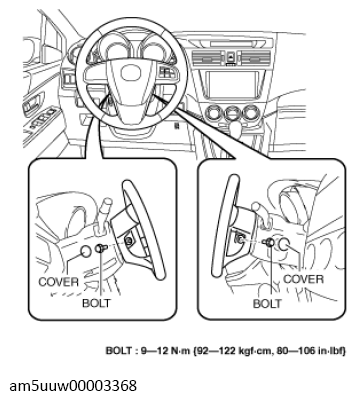

Fig 1: Cover Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

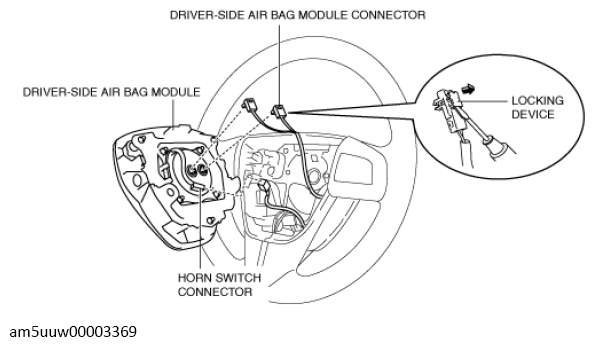

Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

Courtesy of MAZDA MOTORS CORP.
Disconnect the driver-side air bag module connector.
Disconnect the horn switch connector.
Remove the driver-side air bag module.
Install in the reverse order of removal.
Switch the ignition to ON.
Verify that the air bag system warning light illuminates for approx. 6 s and goes out.
- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FOREWORD [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
