Bushing, Power Steering Oil Pump Assembly Note
- Before assembling the bushing, verify that there is no fluid or foreign matter adhering to the oil pump installation surface of the EHPAS control module and motor, and wipe off any fluid or foreign matter using a clean cloth.

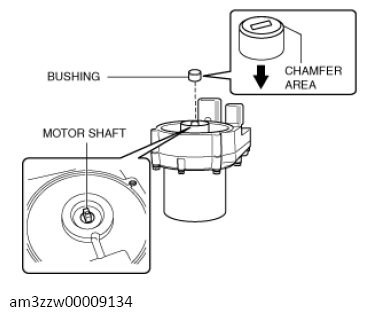

- Install the bushing to the EHPAS control module and motor with the chamfer area oriented to the power steering oil pump side.
- Insert the pump shaft of the power steering oil pump into the bushing and temporarily install the power steering oil pump.NOTE:
- The new power steering oil pump is secured to the pump and housing with a temporary band. Temporarily install with the band left on.
- Rotate the pump left and right to an area in which the band does not contact the motor housing, and verify that the pump shaft is securely engaged with the motor shaft.

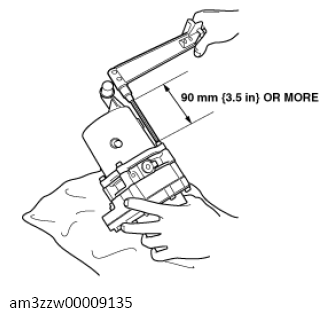

- Remove the band and tighten the power steering oil pump installation bolt using a hexagonal bit socket with a bit area length of 90 mm {3.5 in} or more.NOTE:
- Install the control module with it securely set on clean rags or a mat so that the EHPAS control module and motor do not get scratched.
Tightening torque
7-10 N.m {72-101 kgf.cm, 62-88 in.lbf}
