Steering Lock Component, Steering Lock Mounting Bolt Installation Note

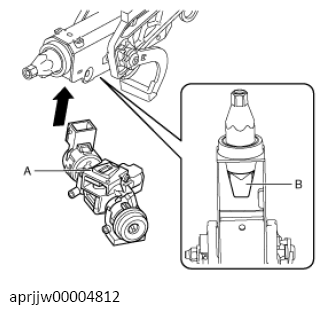

  1. Assemble section A of the steering lock component to the section B of the steering shaft.
    G13727649Courtesy of MAZDA MOTORS CORP.
  2. Temporarily install the steering lock component to the steering shaft using a new steering lock mounting bolt.
  3. Tighten the steering lock mounting bolt until the head breaks off.
    G13727650Courtesy of MAZDA MOTORS CORP.
