Connector A Connection Note

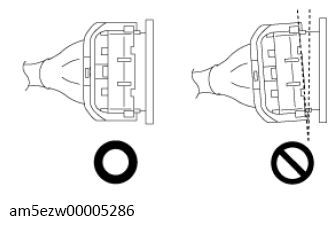

  1. Verify that the connector A lever is tilted towards the wiring harness side as shown in the figure.
  2. Insert the connector A straight until it contacts the SAS control module and verify that the lever reverts upward naturally.
    CAUTION:
    • If the connector A is inserted at an angle and the lever is moved, the connector could be damaged. Verify that the connector A is inserted straight.
    G13729129Courtesy of MAZDA MOTORS CORP.
  3. Push the lever until a click is heard.
