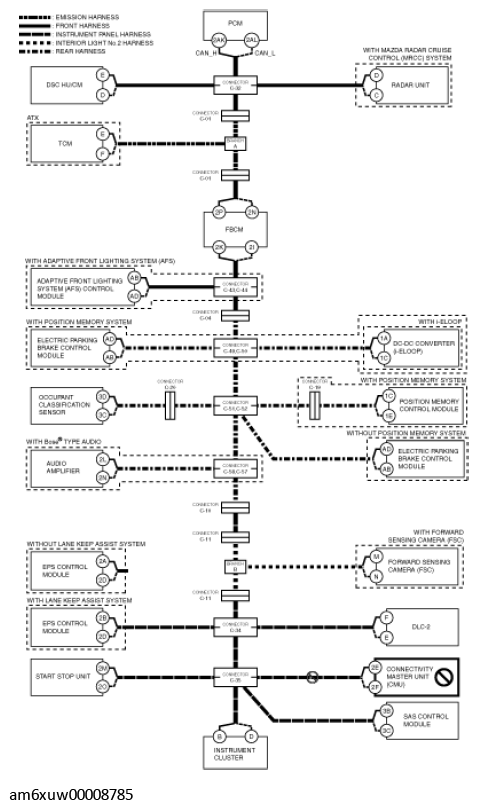

System wiring diagram

Fig 1: System Wiring Circuit Diagram

Courtesy of MAZDA MOTORS CORP.

Inspection item

• Connectivity master unit (CMU) power supply voltage-related wiring harness and fuse
• Connectivity master unit (CMU) body ground related wiring harness
• Connectivity master unit (CMU) connector
• Connector C-35
• Wiring harness between connectivity master unit (CMU) terminal 2E and connector C-35
• Wiring harness between connectivity master unit (CMU) terminal 2F and connector C-35
• Connectivity master unit (CMU)
