System Wiring Diagram

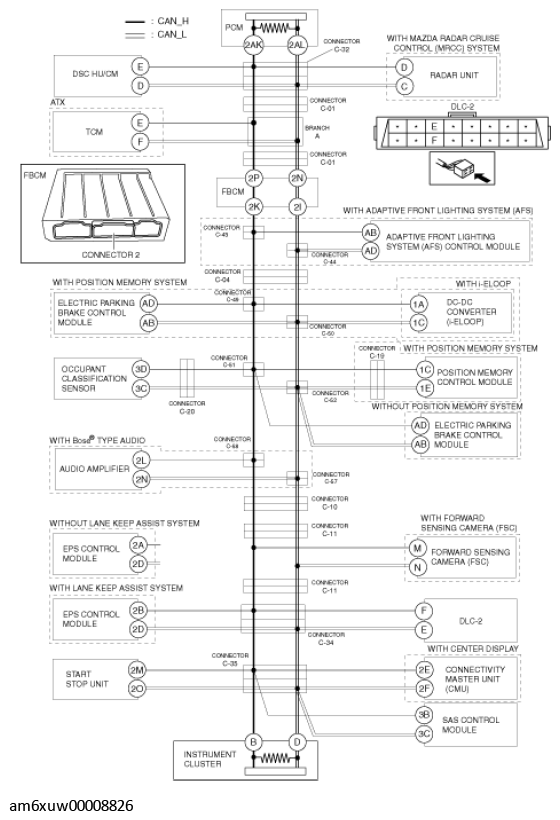

Fig 1: System Wiring Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
