Steering Gear And Linkage Assembly: Notes
CAUTION:
- To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
- Assemble in the order shown in the figure.
- Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

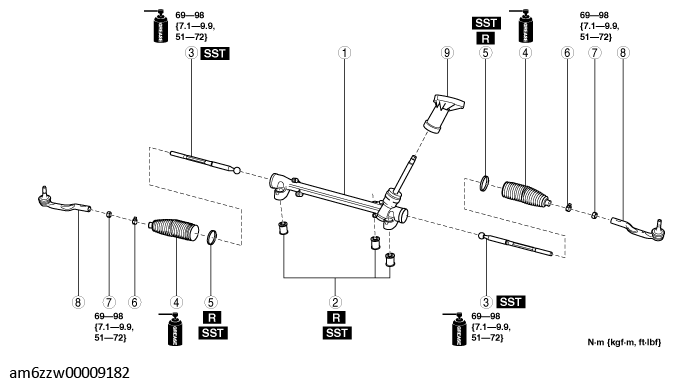

COMPONENT DESCRIPTION
| 1 | Steering gear |
| 2 | Mounting rubber (See Mounting Rubber Assembly Note .) |
| 3 | Tie rod (See Tie Rod Assembly Note .) |
| 4 | Boot |
| 5 | Boot band (See Boot Band Assembly Note .) |
| 6 | Boot damp |
| 7 | Locknut |
| 8 | Tie-rod end (See Tie-rod End Assembly Note .) |
| 9 | Dust cover |
