Automatic transaxle 7

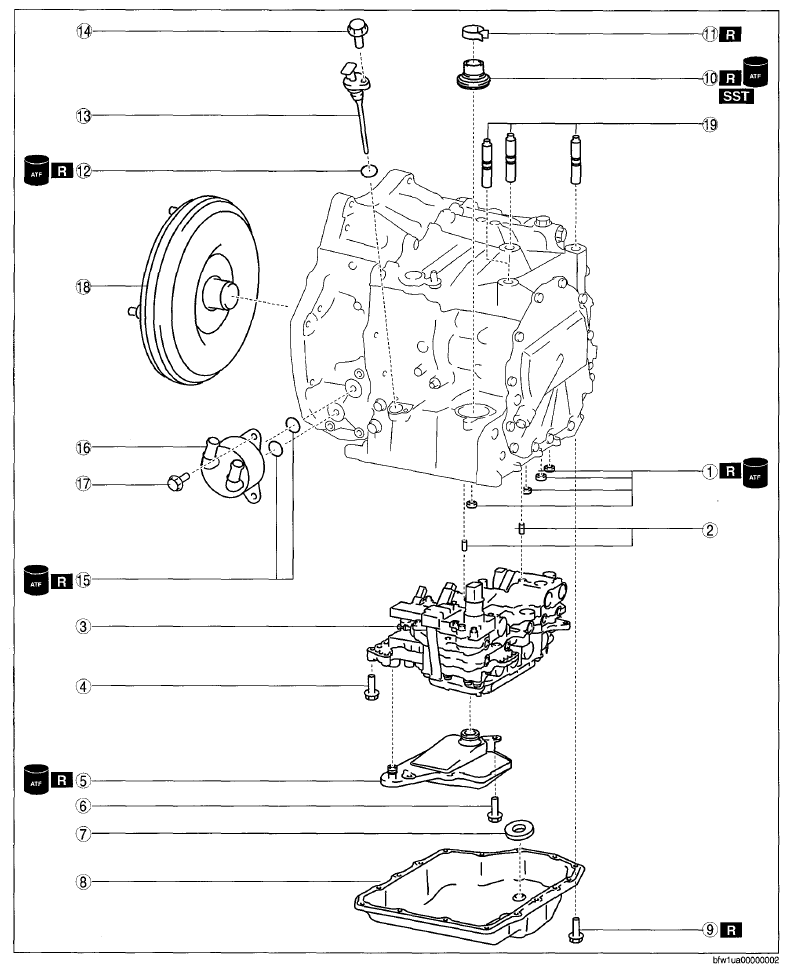

COMPONENT DESCRIPTION
| 1 | Gasket |
| 2 | Dowel pin |
| 3 | Control valve body |
| 4 | 11 bolts (M6x1.0 bolt, length to approx. 30 mm {1.2 in}) |
| 5 | Oil strainer |
| 6 | 2 bolts (M6x1.0 bolt, length to approx. 16 mm {0.63 in}) |
| 7 | Magnet |
| 8 | Oil pan |
| 9 | 16 bolts (M6x1.0 bolt, length to approx. 15 mm {0.59 in}*) |
| 10 | Oil seal |
| 11 | Hose clamp |
| 12 | O-ring (outer diameter approx. 16.6 mm {0.654 in}, thickness approx. 2.4 mm {0.094 in}) |
| 13 | Dipstick |
| 14 | Bolt (M6x1.0 bolt, length to approx. 16 mm {0.63 in}) |
| 15 | O-ring (outer diameter approx. 24.4 mm {0.961 in}, thickness approx. 2.4 mm {0.094 in}) |
| 16 | Oil cooler |
| 17 | 3 bolts (M8x1.25 bolt, length to approx. 25 mm {0.98 in}) |
| 18 | Torque converter |
| 19 | Stud bolt |
*: Length without spring washer is indicated due to bolt with spring washer. Length with spring washer is approx. 13 mm {0.51 in}.
