Rear Stabilizer Component Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear stabilizer component to the vehicle through the gap created by the removal of the rear coil spring.

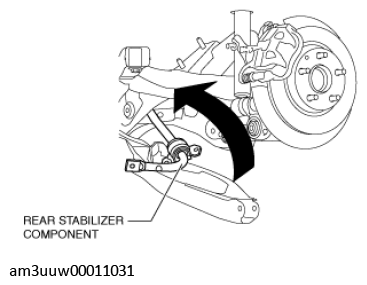

Fig 1: Installing Rear Stabilizer Component To Vehicle
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten nuts A and B shown in the figure.

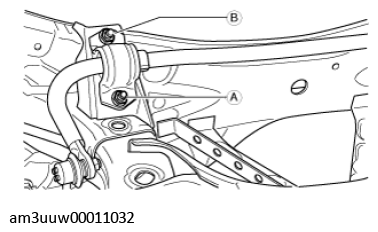

Fig 2: Rear Stabilizer Component Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten nut A.
Tightening torque

21-26 N.m {2.2-2.6 kgf.m, 16-19 ft.lbf}
Tighten nut B.
Tightening torque

21-26 N.m {2.2-2.6 kgf.m, 16-19 ft.lbf}
Tighten nut A.
Tightening torque

21-26 N.m {2.2-2.6 kgf.m, 16-19 ft.lbf}
