Clutch Hub Sleeve Assembly Note

  1. Align the positioning groove of the clutch hub sleeve with the center of the clutch hub key groove as shown in the figure, and assemble the clutch hub sleeve.

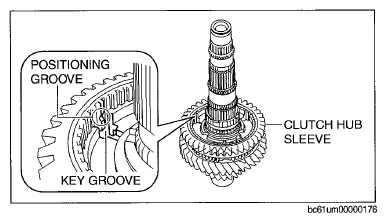

    Fig 1: Aligning Positioning Groove Of Clutch Hub Sleeve With Center Of Clutch Hub Key Groove
    G08347888
