DTC B1143-13; IG2 Relay Control Circuit Malfunction: Notes

DETECTION CONDITION & POSSIBLE CAUSES

Description	IG2 relay control circuit malfunction
Detection condition	Front body control module (FBCM) detects an open circuit in the IG2 relay control circuit for 2 s or more with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

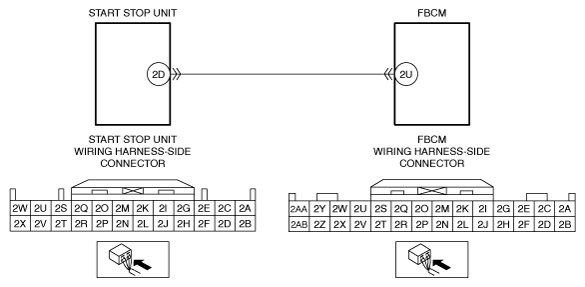

Possible cause	Start stop unit connector or terminal malfunction Front body control module (FBCM) connector or terminal malfunction Open circuit in the wiring harness between start stop unit terminal 2D and front body control module (FBCM) terminal 2U Start stop unit malfunction Front body control module (FBCM) malfunction
