Using TPMS Set Switch

  1. Adjust all four tire pressures to the specification while the tires are cold.
  2. Switch the ignition ON (engine can be OFF or ON).
  3. Press and hold the TPMS set switch. See Fig 1.
  4. Press and hold the TPMS set switch until the TPMS warning light flashes 1 or 2 times and the indicator alarm sounds 1 time.
  5. When the TPMS initialization is performed, learning initiates. Learning is completed by driving the vehicle for 20 minutes.
NOTE: TPMS is inoperative during learning phase.

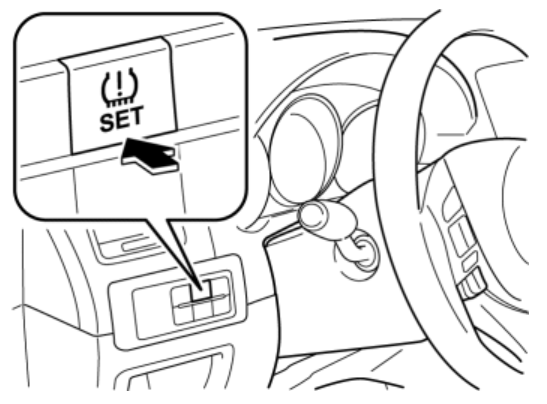

Fig 1: Identifying TPMS Set Switch (Typical)
G00530768Courtesy of MAZDA MOTORS CORP.
