Passenger-Side Air Bag Module Removal/Installation [Standard Deployment Control System]

WARNING:

Handling the passenger-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the passenger-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)

Switch the ignition off.
Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the cap.

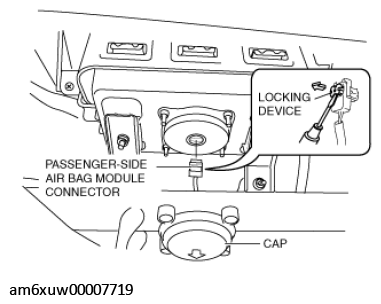

Fig 1: Removing Passenger-Side Air Bag Module
Courtesy of MAZDA MOTORS CORP.
Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
Disconnect the passenger-side air bag module connector.
Remove the fastener.

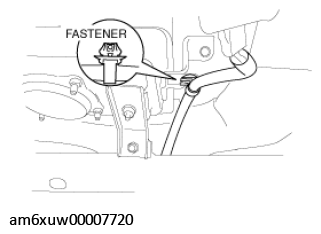

Fig 2: Passenger-Side Air Bag Module Fastener Location
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

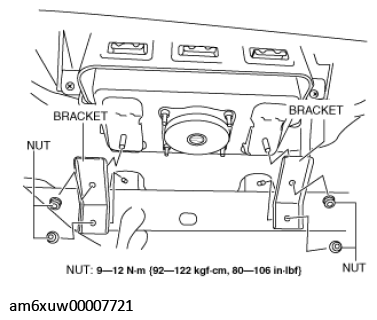

Fig 3: Locating Passenger-Side Air Bag Module Bracket Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the brackets.
Remove the screws.

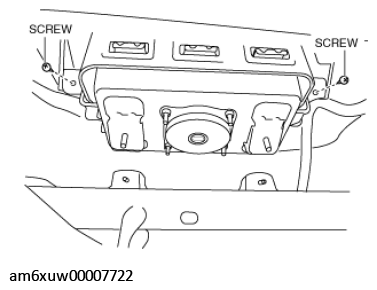

Fig 4: Locating Passenger-Side Air Bag Module Bracket Screws
Courtesy of MAZDA MOTORS CORP.
Move the passenger-side air bag module in the direction of arrow (2) shown in the figure and detach guide B from the dashboard while spreading the dashboard in the direction of arrow (1).

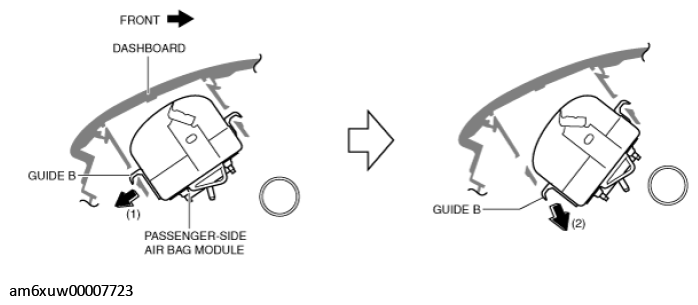

Fig 5: Detaching Guide B From Dashboard
Courtesy of MAZDA MOTORS CORP.
Move the passenger-side air bag module in the direction of the arrow (3) and detach guides A from the dashboard.

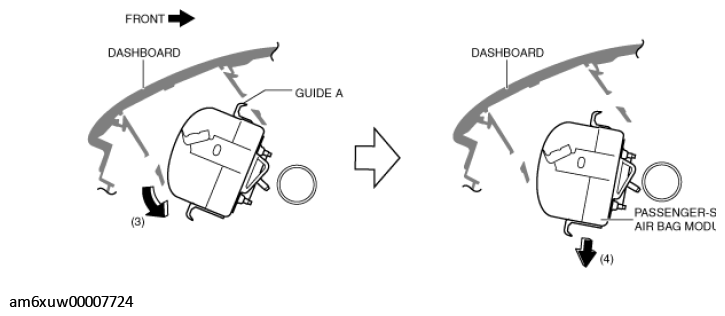

Fig 6: Detaching Guide A From Dashboard
Courtesy of MAZDA MOTORS CORP.
Move the passenger-side air bag module in the direction of the arrow (4), and remove the passenger-side air bag module.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag system warning light illuminates for approx. 6 s and turns off.
- If the air bag system warning light does not operate, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)] .)
