Restraints
>>
Air Bag, SRS
>>
On-Board Diagnostic - Standard Deployment Control System
>>
On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System)]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System)]

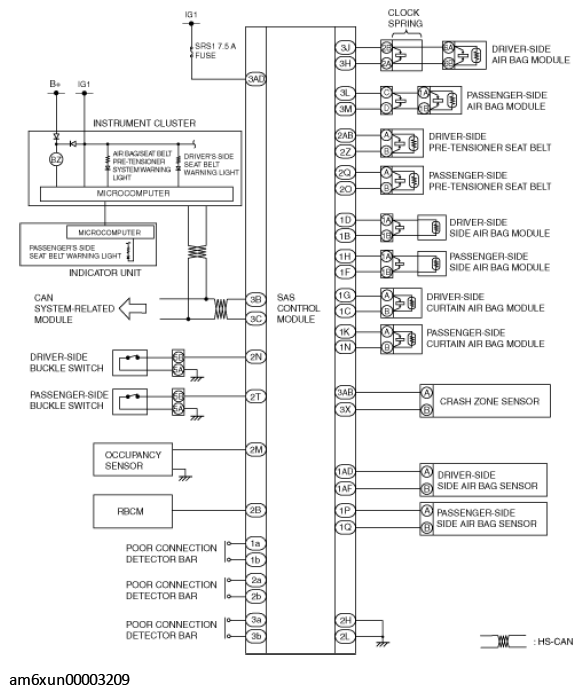

Fig 1: SAS Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Fig 2: Locating SAS Control Module Harness-Side Connector Terminal
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
